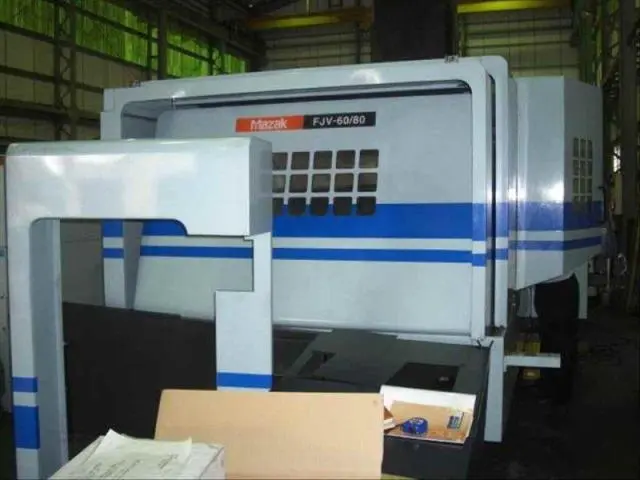

MAZAK FJV 60/80
Have one to sell?
ConditionUsed
1 available
THIS FJV 60/ 80 HAS TRAVELS OF 78 X 55 X 23 WITH CAT 50/ 6000 RPM SPINDLE, 30 TOOL ATC, RENISHAW PROBE AND FUSION 640 CONTROL.
SPECIFICATIONS
X-AXIS TRAVEL 78.7"
Y-AXIS TRAVEL 55.1"
Z-AXIS TRAVEL 23.0"
TABLE SIZE 88.2" X 49.2"
MAXIMUM WORKPIECE WEIGHT 8,800 LBS
X-AXIS CUTTING FEED 708 IPM
X-AXIS RAPID TRAVERSE 1260 IPM
Y-AXIS CUTTING FEED 708 IPM
Y-AXIS RAPID TRAVERSE 945 IPM
Z-AXIS CUTTING FEED 708 IPM
Z-AXIS RAPID TRAVERSE 708 IPM
SPINDLE TAPER #50
SPINDLE SPEED 6,000 RPM
MAXIMUM TOOL LENGTH 19.90"
MAXIMUM TOOL DIAMETER 8.27"
MAXIMUM TOOL WEIGHT 44 LBS
TOOL CHANGE TIME 2 SECONDS
CHIP-TO-CHIP TIME 10 SECONDS
MAZATROL FUSION 640M CNC CONTROL
30-ATC AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
RENISHAW MP 3 PROBE
THIS FJV 60/ 80 HAS TRAVELS OF 78 X 55 X 23 WITH CAT 50/ 6000 RPM SPINDLE, 30 TOOL ATC, RENISHAW PROBE AND FUSION 640 CONTROL.
Imperial
| X Travel | 78.7" |
| Y Travel | 55.1" |
| Z Travel | 23" |
| Spindle Speed | 6000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 88.2" |
| Table Size (L) | 49.2" |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | 7.97" - 30.91" |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC (MAZATROL FUSION 640M) |
SPECIFICATIONS
X-AXIS TRAVEL 78.7"
Y-AXIS TRAVEL 55.1"
Z-AXIS TRAVEL 23.0"
TABLE SIZE 88.2" X 49.2"
MAXIMUM WORKPIECE WEIGHT 8,800 LBS
X-AXIS CUTTING FEED 708 IPM
X-AXIS RAPID TRAVERSE 1260 IPM
Y-AXIS CUTTING FEED 708 IPM
Y-AXIS RAPID TRAVERSE 945 IPM
Z-AXIS CUTTING FEED 708 IPM
Z-AXIS RAPID TRAVERSE 708 IPM
SPINDLE TAPER #50
SPINDLE SPEED 6,000 RPM
MAXIMUM TOOL LENGTH 19.90"
MAXIMUM TOOL DIAMETER 8.27"
MAXIMUM TOOL WEIGHT 44 LBS
TOOL CHANGE TIME 2 SECONDS
CHIP-TO-CHIP TIME 10 SECONDS
MAZATROL FUSION 640M CNC CONTROL
30-ATC AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
RENISHAW MP 3 PROBE
