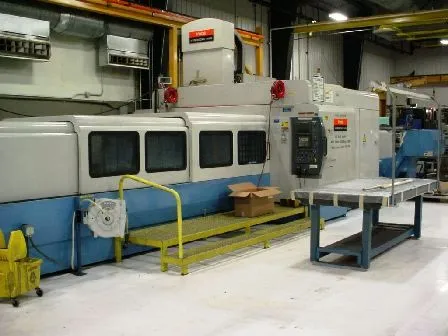

MAZAK HYPERSONIC 1400L

SPECIFICATIONS:
TABLE SIZE 157.5" X 49.2"
MAXIMUM TABLE LOAD 3,300 LBS
X-AXIS TRAVEL 165.35"
Y-AXIS TRAVEL 55.12"
Z-AXIS TRAVEL 23.03"
MAXIMUM WORKPIECE SIZE 157.5" X 49.2" X 21.65"
DISTANCE SPINDLE NOSE TO TABLE TOP 7.87"-30.91"
DISTANCE BETWEEN COLUMNS 49.21"
SPINDLE SPEED 20 - 20,000 RPM MAX.)
SPINDLE SPEED INCREMENT 1 RPM
SPINDLE NOSE BIG PLUS # 50
SPINDLE HP 100/50
RAPID TRAVERSE RATE 4,724 IPM (X & Y)
1,574 IPM (Z)
FEED RATE (X,Y,Z) 1,574 IPM
ATC CAPACITY 30 TOOLS
CHIP-TO-CHIP TIME 4.8 SEC.
MAXIMUM TOOL LENGTH 15.74"
MAXIMUM TOOL WEIGHT 44 LBS
COOLANT THRU SPINDLE PRESSURE 1,000 PSI
APPROXIMATE OVERALL DIMENSIONS 540" L-R X 175" F-B X 151" H
APPROXIMATE WEIGHT 55000 LBS
