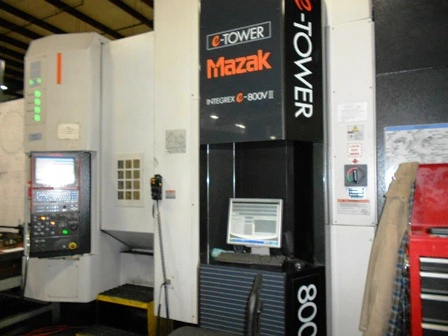

MAZAK INTEGREX E-800V II

SPECIFICATIONS:
MAXIMUM SWING WITH 2 PALLET CHANGER     28.74"
X-AXIS TRAVELS                          43.3"
Y-AXIS TRAVELS                          31.49"
Z-AXIS TRAVELS                          35.43"
B-AXIS TRAVELS                          -30 ~ + 120 DEG.
C-AXIS TRAVELS                          360
MAXIMUM TABLE LOAD                      1,542 LBS.
MAXIMUM WORKPIECE HEIGHT                39.37"
MAXIMUM WORKPIECE DIAMETER              28.74"
TABLE
MAXIMUM SPEED                           1,000 RPM
MINIMUM INDEXING INCREMENT              1 RPM
SPINDLE HORSEPOWER                      (30 MIN/CONT)40 / 30
SPINDLE TORQUE                          738 FT/LBS
OBTAINS FULL HP                         210 RPM'S
C-AXIS CLAMPING TORQUE                  1807 FT/LBS.
C-AXIS CONTOURING TORQUE                (30% ED) 590 FT/LBS.

MILLING SPINDLE
SPINDLE NOSE                           CAT 40
SPINDLE HORSEPOWER                     (30 MIN/CONT)30
SPINDLE TORQUE                         209 FT/LBS.
OBTAINS FULL HP                        @ 750 RPM'S
SPINDLE SPEED                          12,000 RPM'S
SPINDLE SPEED INCREMENT                1 RPM
NUMBER OF RANGES                       2 ELECTRICAL
AUTOMATIC TOOL CHANGER
     MAGAZINE CAPACITY                 120
TOOL-TO-TOOL TIME                      4.1 SECS.
CHIP-TO-CHIP TIME                      5.1 SECS.
TOOL SELECTION METHOD                  RANDOM / SHORTEST
MAXIMUM TOOL DIAMETER                  3.74"
MAX.TOOL DIA.W/ADJACENT POCKETS EMPTY  5.91"
MAXIMUM TOOL LENGTH                    15.75"
MAXIMUM TOOL WEIGHT                    26 LBS.

AXIS RAPID RATES
X Y AND Z-AXIS                         1968 IPM
B-AXIS                                 50 RPM
C-AXIS                                 50 RPM
FLOOR SPACE REQUIRED                   136.18" X 297.24"
MACHINE HEIGHT FROM BOTTOM OF BASE     135.23"
MACHINE WEIGHT WITH 2 PALLET CHANGER   46,284 LBS.
