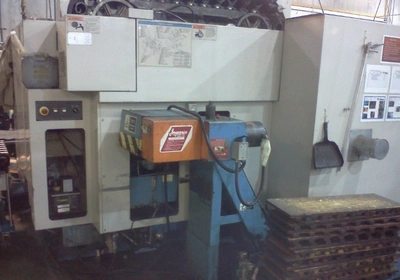

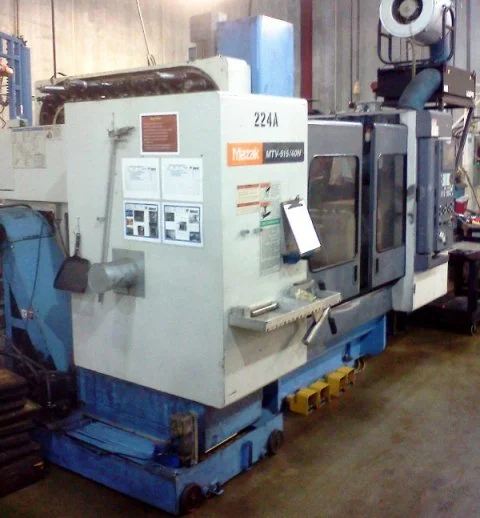

MAZAK MTV 515/40N
Have one to sell?
ConditionUsed
1 available
THIS MTV 515/ 40 HAS A CAT 50/ 6000 RM SPINDLE, 30 POSITION ATC AND A FUSION 640 CONTROL. TRAVELS OF 41 X 20 X 22.
SPECIFICATIONS:
X-AXIS TRAVEL 41.3"
Y-AXIS TRAVEL 20.0"
Z-AXIS TRAVEL 22.0"
SPINDLE NOSE TO TABLE 7.8" - 29.9"
TABLE SIZE 51.18" X 21.65"
TABLE LOAD CAPACITY 3300 LBS.
SPINDLE SPEED RANGE 25-6000 RPM
SPINDLE NOSE TO TABLE 7.8" - 29.9"
SPINDLE TAPER CAT #50
MAIN MOTOR DRIVE 20 HP / 15 HP
MAZATROL FUSION 640 CNC CONTROL
30-POSITION AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
4TH AXIS PRE-WIRE
THIS MTV 515/ 40 HAS A CAT 50/ 6000 RM SPINDLE, 30 POSITION ATC AND A FUSION 640 CONTROL. TRAVELS OF 41 X 20 X 22.
Imperial
| X Travel | 41.3" |
| Y Travel | 20" |
| Z Travel | 22" |
| Spindle Speed | 6000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 51.18" |
| Table Size (L) | 21.65" |
| Main Spindle Motor | 20 hp |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | 7.8" - 29.9" |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC (MAZATROL FUSION 640) |
SPECIFICATIONS:
X-AXIS TRAVEL 41.3"
Y-AXIS TRAVEL 20.0"
Z-AXIS TRAVEL 22.0"
SPINDLE NOSE TO TABLE 7.8" - 29.9"
TABLE SIZE 51.18" X 21.65"
TABLE LOAD CAPACITY 3300 LBS.
SPINDLE SPEED RANGE 25-6000 RPM
SPINDLE NOSE TO TABLE 7.8" - 29.9"
SPINDLE TAPER CAT #50
MAIN MOTOR DRIVE 20 HP / 15 HP
MAZATROL FUSION 640 CNC CONTROL
30-POSITION AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
4TH AXIS PRE-WIRE
