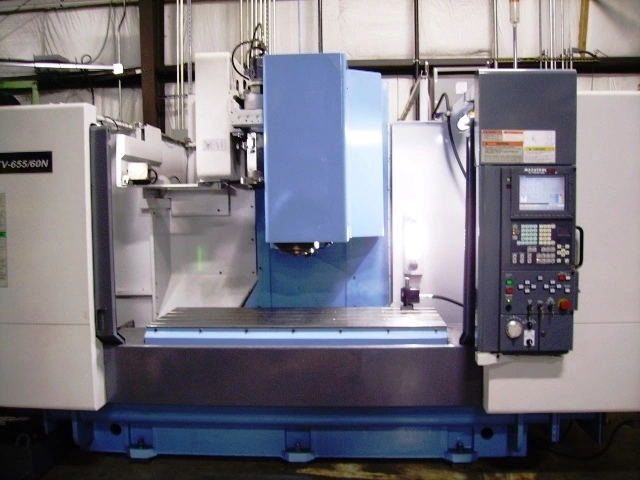

MAZAK MTV 655/60N

SPECIFICATIONS:
PALLET SIZE                    68.5" X 25.6"
X AXIS TRAVELS                 59.06"
Y AXIS TRAVELS                 25.6"
Z AXIS TRAVELS                 25.6"
SPINDLE CENTER TO TOP OF PLTT  7.87" ~ 33.46"
MAXIMUM TABLE LOAD             4,409 LBS.
MAXIMUM WORKPIECE SIZE (L/W/H) 68.5"/22.5"/30.31"
SPINDLE NOSE                   #50
SPINDLE HP (30 MIN/CONT)       25 HP/20 HP
CONSTANT TORQUE RANGE          559 FT./LBS.
SPINDLE RPM                    25 ~ 6000 RPM
MAGAZINE CAPACITY              60
TOOL TO TOOL TIME/CHIP TO CHIP 2.4 SEC. / 6.0 SEC
MAXIMUM TOOL DIAMETER          4.92"
MAX. TOOL DIS.W/ADJ.
                POCKETS EMPTY  10.23"
MAXIMUM TOOL LENGTH / WEIGHT   15.74" / 44 LBS
RAPID TRAVERSE RATE (X&Y/Z)    1024 IPM / 787 IPM
FLOOR SPACE REQUIRED           175" X 155.3" X 117.8”
MACHINE WEIGHT                 24,251 LBS.
