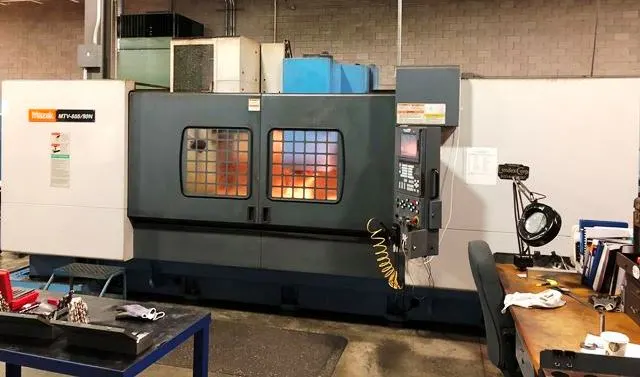

MAZAK MTV 655/80 VERTICAL MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
MTV 655/80
Year:
2001
Stock #:
4958
Status:
For Sale

Description

THIS MTV 655/ 80 HAS A FUSION 640 CONTROL, CAT 50/ 6000 RPM SPINDLE, 213 PSI COOLANT THRU, RENISHAW PROBE, 60 POSITION ATC AND TRAVELS OF 79.05 X 25.6 X 25.6.

X Travel79.05"2,007.9 mm
Y Travel25.6"650.24 mm
Z Travel25.6"650.24 mm
Spindle Speed6,000 RPM6000 rpm
Tool Capacity (ATC)6060
Table Size (W)88.5"2,247.9 mm
Table Size (L)25.6"650.24 mm
Main Spindle Motor35 hp
Spindle TaperCAT 50CAT 50
Spindle Nose To Table Top7.87" ~ 33.46"7.87" ~ 33.46"
Coolant Thru High PressureYesYes
Hi Pressure Coolant System213 psi
Part ProbeYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
ControlCNC (MAZATROL FUSION 640M)CNC (MAZATROL FUSION 640M)
Weight38,000 LBS38,000 LBS

SPECIFICATIONS:
TABLE SIZE              25.6" X 88.5"
X - AXIS TRAVEL         79.05"
Y - AXIS TRAVEL         25.6"
Z - AXIS TRAVEL         25.6"
SPINDLE NOSE->TABLE TOP 7.87"-33.46"
TABLE LOAD CAPACITY     4400 LBS.
RAPID RATE X, Y         945 IPM
RAPID TRAVERSE RATE Z   708 IPM
SPINDLE NOSE            CAT# 50
SPINDLE SPEED           25-6000 RPM
SPINDLE TORQUE          544 FT-LBS.
TOOL MAGAZINE           60 ATC
TOOL DIA.               4.92"
TOOL LENGTH             15.75"
TOOL WEIGHT             44 LBS.
TOOL TO TOOL            2.4 SEC
CHIP TO CHIP            7.5 SEC.
SPINDLE HORSEPOWER      35 HP AC
MACHINE WEIGHT          38,000#

MAZATROL FUSION 640M CNC COLOR CONVERSATIONAL CONTROL
213 PSI COOLANT THRU SPINDLE
ADVANTECH CNC OPTION PACKAGE
AIR BLAST
INCH/METRIC
MANUAL PULSE GENERATOR
RENISHAW MONITOURING SYSTEM B WITH MP3 PROBE
TRANSFORMER
CHIP CONVEYOR
FULL ENCLOSURE
ALL AVIALABLE MANUALS
