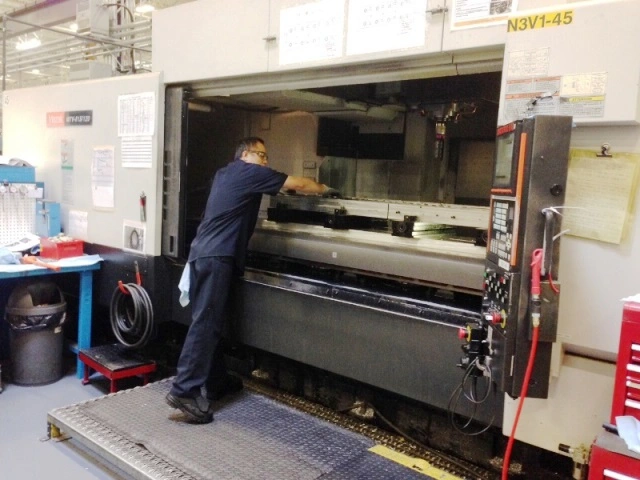

MAZAK MTV 815/120 W/4TH AXIS
Have one to sell?
ConditionUsed
1 available
THE MTV 815/ 120 COMES WITH A 2 PALLET CHANGER, FUSION 640M CONTROL, 15" - 4TH AXIS TABLE, 60 TOOL ATC, A CAT 50/ 10000 RPM SPINDLE AND TRAVELS OF 120 X 33 X 29.53.
SPECIFICATIONS:
TABLE SIZE 31.9"X 127.56"
TABLE TRAVEL X - AXIS 120"
Y - AXIS 33"
Z - AXIS 29.53"
TABLE TOP TO SPINDLE NOSE 7.87" - 37.40"
TABLE LOAD CAPACITY 6614 LBS.
RAPID TRAVERSE RATES 945 X,Y, IPM
709 Z, IPM
SPINDLE NOSE CAT # 50
SPINDLE SPEED 10,000 RPM
TOOL MAGAZINE 60 ATC
TOOL DIA. 4.92"
TOOL LENGTH 15.75"
TOOL WEIGHT 44 LBS.
TOOL TO TOOL 2.4 SEC
CHIP TO CHIP 7.5 SEC.
MAIN MOTOR 35/30 HP AC
MAZATROL FUSION CONTROL 640M
2 PALLET CHANGER
10,000 RPM
60 TOOL ATC
CONCEP CHIP CONVEYOR
RENISHAW PART PROBE
TOOL PROBE
4TH AXIS ROTARY TABLE 15"
ALL AVAILABLE MANUALS
