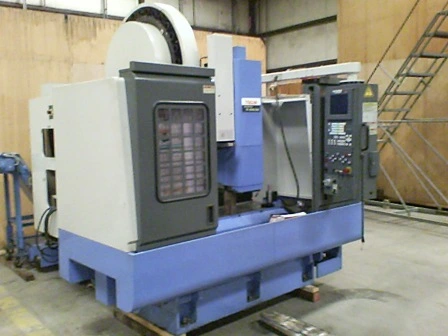

MAZAK V 414/32
Have one to sell?
ConditionUsed
1 available
THIS SUPER CLEAN V 414/ 32 IS EQUIPPED WITH FUSION 640 CONTROL, SMW RT 160 INDEXER AND A CAT 40/10000 RPM SPINDLE.
SPECIFICATIONS:
TABLE SIZE 43.3" X 16.14"
X TRAVELS 32"
Y TRAVELS 16.14"
Z TRAVELS 18.11"
TAPER CAT #40
SPINDLE SPEED 10,000 RPM
MAIN MOTOR 20 HP
NUMBER OF TOOLS 30 ATC
MAZATROL FUSION 640 CONTROL
AUTO TOOL LENGTH MEASUREMENT
RIGID TAPPING
CHIP CONVEYOR
THIS SUPER CLEAN V 414/ 32 IS EQUIPPED WITH FUSION 640 CONTROL, SMW RT 160 INDEXER AND A CAT 40/10000 RPM SPINDLE.
Imperial
| X Travel | 32" |
| Y Travel | 16.14" |
| Z Travel | 18.11" |
| Spindle Speed | 10000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 43.3" |
| Table Size (L) | 16.14" |
| Main Spindle Motor | 20 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 5.91"- 24.02" |
| 4 Axis Table Rotation | 1 Degree Index |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC (MAZATROL FUSION 640) |
SPECIFICATIONS:
TABLE SIZE 43.3" X 16.14"
X TRAVELS 32"
Y TRAVELS 16.14"
Z TRAVELS 18.11"
TAPER CAT #40
SPINDLE SPEED 10,000 RPM
MAIN MOTOR 20 HP
NUMBER OF TOOLS 30 ATC
MAZATROL FUSION 640 CONTROL
AUTO TOOL LENGTH MEASUREMENT
RIGID TAPPING
CHIP CONVEYOR
