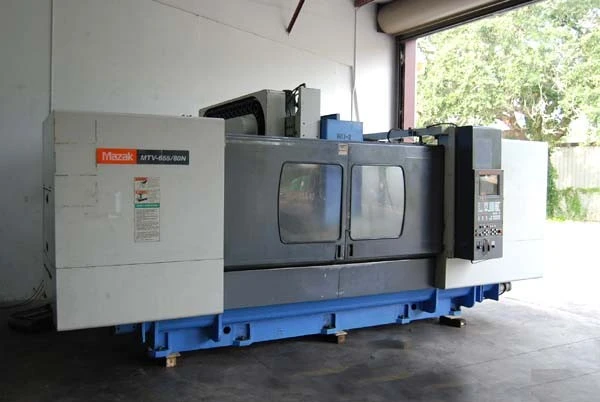

MAZAK V 655/80N
Have one to sell?
ConditionUsed
1 available
THIS V 655/ 80N IS PREPPED FOR A 4TH AXIS (ALL CABLING AND CLAMPING), COOLANT THRU SPINDLE,. ATLM AND A CAT 50/ 6000 RPM SPINDLE.
SPECIFICATIONS:
TABLE SIZE 25.6" X 88.1"
TABLE TRAVEL X - AXIS 78.75"
Y - AXIS 25.6"
Z - AXIS 25.6"
TABLE TOP TO SPINDLE NOSE 7.87"-33.46"
TABLE LOAD CAPACITY 5500 LBS.
RAPID TRAVERSE RATES 945 X,Y, IPM
708 Z, IPM
SPINDLE NOSE CAT # 50
SPINDLE SPEED 25-6000 RPM
SPINDLE TORQUE 544 FT-LBS.
TOOL MAGAZINE 30 ATC
TOOL DIA. 4.92"
TOOL LENGTH 15.75"
TOOL WEIGHT 44 LBS.
TOOL TO TOOL 2.4 SEC
CHIP TO CHIP 7.5 SEC.
MAIN MOTOR 35/30 HP AC
MAZATROL M-PLUS CNC CONVERSATIONAL CONTROL
EIA/ISO
4TH AXIS (PREP) W/ ALL CABLING AND HYDRAULIC CLAMPING
2-D MAZAK HIGH SPEED MACHININNG SOFTWARE
MONITOURING SYSTEM B (PREP)
COOLANT THRU THE SPINDLE
USER MACROS
AUTOMATIC TOOL LENGTH MEASUREMENT
RIGID TAPPING
SHG (SUPER HIGH GAIN) FOR CORNER ACCURACY
REMOTE PULSE GENERATOR
ADDITIONAL WORK PIECE COORDINATES
CHIP CONVEYOR
FULL ENCLOSURE
ALL AVAILABLE MANUALS
