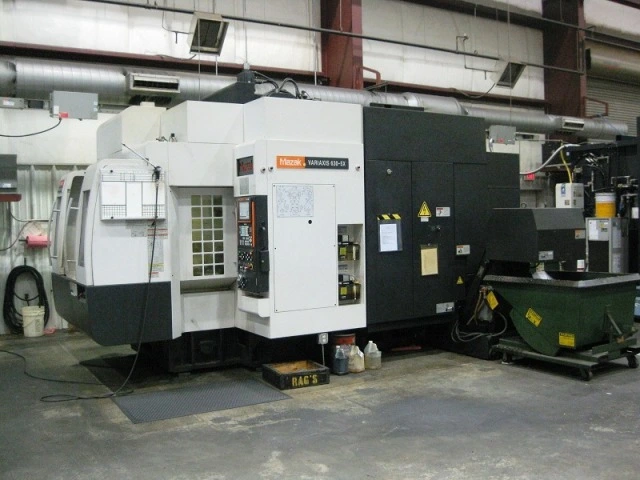

MAZAK VARIAXIS 630-5X II 2 APC INTELLIGENT/MULTI-TASKING MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
THIS VARIAXIS 630/ 5X COMES WITH 2 PALLETS, FUSION 640M-5X CONTROL, DIE-MOLD PACKAGE, MAZAK FLOW 1000 PSI COOLANT, RENISHAW MP 700 PROBE AND HSK 63/ 12000 RPM SPINDLE.
SPECIFICATIONS:
TABLE SIZE(2 APC) 19.69"X 19.69"
MAX. WORKPIECE LOAD 1,102 LBS.
TABLE TRAVEL X - AXIS 24.80"
Y - AXIS 30.12"
Z - AXIS 20.08"
A - AXIS 150 DEGREES (+120/-30)
C - AXIS 360 DEGREES INF
DISTANCE FROM SPINDLE NOSE TO TABLE TOP 9.06"- 29.13"
RAPID TRAVERSE RATES 1969 X,Y, IPM
1969 Z, IPM
CUTTING FEED RATES 1969 IPM
SPINDLE NOSE HSK 63
SPINDLE SPEED 12,000 RPM
TOOL MAGAZINE 30 ATC
MAIN MOTOR 30 HP AC
MACHINE WEIGHT 29,228 LBS.
MAZATROL PC-FUSION-CNC 640M 5X
INTERFACE SET (KEYBOARD,MOUSE,PARAREL)
CONTROL W/ WINDOWS 2000 OS
DIE-MOLD PACKAGE W/O DATA FORWARD FUNC.
2 PALLET CHANGER
SPINDLE SPEED 12000 RPM(20KGFM)
HSK SPINDLE ATC-30T (N/A
EUCHNER ID)
MOD FOR COOLANT AND AIR THRU WHILE SPINDLE ROTATES
MAZAK SUPER FLOW I (1000PSI
6.5 GPM)SINGLE BAG FIL
RENISHAW MP700
PROBE READY KIT W/HSK-63A TOOL
SHANK/STYLUS/EIA SOFTWARE
WORKPIECE AIR BLAST
OIL SKIMMER RB-200
ADDITIONAL WORK LIGHT
ADDITIONAL M-CODE FUNCTION (1 M-CODE)
CHIP CONVEYOR(CONSEP 2000)RIGHT SIDE DISP
