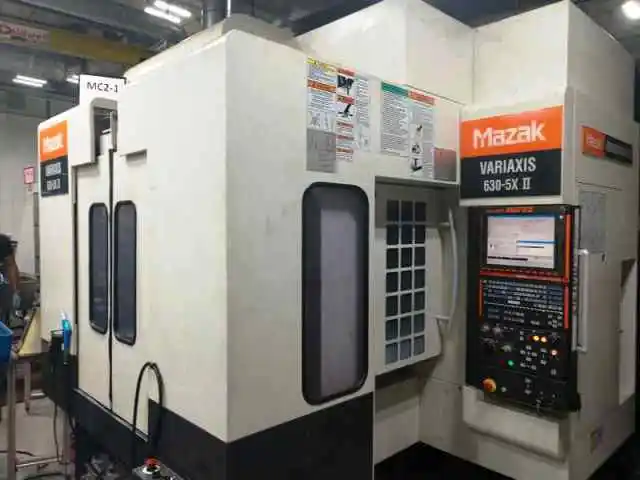

MAZAK VARIAXIS 630 5X II/ 2 APC INTELLIGENT/MULTI-TASKING MACHINING CENTER

MAZAK VARIAXIS 630 5X II/ 2 APC INTELLIGENT/MULTI-TASKING MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
VARIAXIS 630 5X II/ 2 APC
Year:
2008
Stock #:
5402
Status:
For Sale

Description

THIS LATE MODEL VARIAXIS 630/ 5X COMES WITH MATRIX CONTROL, 2 PALLET CHANGER, MAZAK SUPER FLOW 1000 PSI COOLANT, 80 HSK TOOL DOUBLE MAGAZINE AND 18000 RPM SPINDLE.

X Travel24.8"629.92 mm
Y Travel30.1"764.54 mm
Z Travel23.6"599.44 mm
Spindle Speed18,000 RPM18000 rpm
Tool Capacity (ATC)8080
Table Size (W)19.69"500.13 mm
Table Size (L)19.69"500.13 mm
Main Spindle Motor35 hp
Spindle TaperHSK 63HSK 63
Built In or Bolt On TableBuilt InBuilt In
5th Axis Rotary Table Size19.69"500.13 mm
5 Axis Programmable Axis'sFull 5 Axis's ContouringFull 5 Axis's Contouring
Table Type A-Axis Trunnion Tilt Range-120/+30 DEGREES-120/+30 DEGREES
Table Type C-Axis Table Rotation.001.001
Coolant Thru High PressureYesYes
Hi Pressure Coolant System1000 psi
Part ProbeYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
Multiple PalletsYesYes
Palletech System Number of Pallets22
ControlCNC (MAZATROL MATRIX)CNC (MAZATROL MATRIX)

SPECIFICATIONS:
X AXIS TRAVEL         24.8”
Y AXIS TRAVEL         30.1”
Z AXIS TRAVEL         23.6”
A AXIS TRAVEL         -120/+30 DEGREES
C AXIS INDEXING       .001 DEGREES
PALLET SIZE           19.69”X19.69”
MAX TABLE LOAD        1,102 LBS
SPINDLE SPEED         18,000RPM
SPINDLE TAPER         HSK 63
RAPIDS TRAVEL RATES   1,574 IPM X,Y, Z

MAZATROL MATRIX CONTROL
2 PALLET CHANGER
80 HSK TOOL DOUBLE MAGAZINE
HYDRAULIC FIXTURE PREP FOR 2 PC
SCALE FEEDBACK SYSTEM FOR X,Y,Z,A,C, AXIS
18,000 RPM SPINDLE SPEED - HSK63A
WORK MEASURING SYSTEM OMP60, W/INSP PLUS
MAZAK SUPER FLOW T8, 1,000PSI DBL BAG FILTER
COOLANT TEMPERATURE CONTROL SYSTEM
AUTOMATIC FRONT DOOR OPEN/CLOSE
PRESSURE SWITCH FOR THRU COOLANT
HIGH SMOOTHING CONTROL
CHIP CONVEYOR RIGHT SIDE DISPOSAL (CONSEP 2000)
ALL AVAILABLE MANUALS
