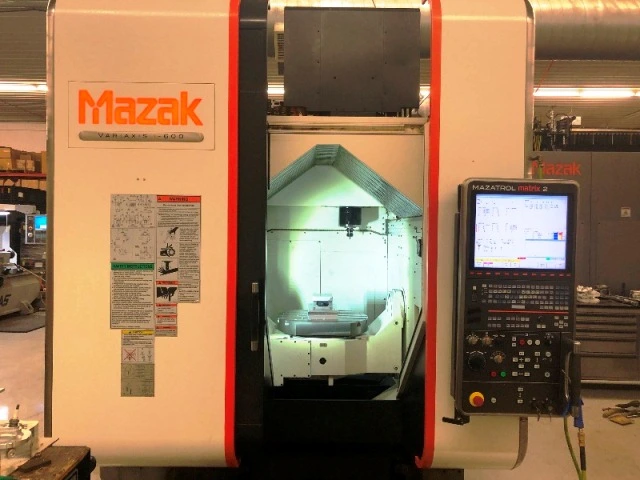

MAZAK VARIAXIS i-600 INTELLIGENT/MULTI-TASKING 5 AXIS MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
THIS 2013 VARIAXIS i-600/ 5 AXIS VERTICAL IS EQUIPPED WITH A MATRIX 2 CONTROL, 40 TOOL ATC, CAT 40/ 12000 RPM SPINDLE, MAZAK SUPER FLOW 1000 PSI COOLANT THRU AND RMP 600 PROBE.
SPECIFICATIONS:
MAX WORKPEICE DIAMETER 27.56
MAX WORKPEICE HEIGHT 17.72
X-AXIS TRAVEL 20.08
Y-AXIS TRAVEL 35.83
Z-AXIS TRAVEL 20.08
A-AXIS TRAVEL -120 TO +30 DEGREES
B-AXIS TRAVEL +/-360 DEGREES
SPINDLE RPM 12,000 RPM
SPINDLE HORSEPOWER 30 H.P.
TABLE SIZE 23.62 X 19.69 WIDTH
ATC 40 TOOLS (CAT40)
MACHINE SIZE H: 125.47 X W: 86.61 X L: 156.69
MACHINE MASS 28,660 LBS
MAZATROL MATRIX 2 CONTROL
40 (CAT40) TOOL MAGAZINE
12,000 RPM
WORK MEASURING SYSTEM RMP600
HINGE TYPE CHIP CONVEYOR REAR DISPOSAL
MAZAK SUPER FLOW S8
THIS 2013 VARIAXIS i-600/ 5 AXIS VERTICAL IS EQUIPPED WITH A MATRIX 2 CONTROL, 40 TOOL ATC, CAT 40/ 12000 RPM SPINDLE, MAZAK SUPER FLOW 1000 PSI COOLANT THRU AND RMP 600 PROBE.
Imperial
| X Travel | 20.08" |
| Y Travel | 35.83" |
| Z Travel | 20.08" |
| Spindle Speed | 12000 rpm |
| Tool Capacity (ATC) | 40 |
| Table Size (W) | 23.62" |
| Table Size (L) | 19.69" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 40 |
| Built In or Bolt On Table | Built In |
| 5 Axis Programmable Axis's | Full 5 Axis's Contouring |
| Table Type A-Axis Trunnion Tilt Range | -120 TO +30 DEGREES |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 1000 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC (Mazatrol Matrix 2) |
| Dimensions | 156.69 X 86.61 X 125.47 |
| Weight | 28,660 LBS |
SPECIFICATIONS:
MAX WORKPEICE DIAMETER 27.56
MAX WORKPEICE HEIGHT 17.72
X-AXIS TRAVEL 20.08
Y-AXIS TRAVEL 35.83
Z-AXIS TRAVEL 20.08
A-AXIS TRAVEL -120 TO +30 DEGREES
B-AXIS TRAVEL +/-360 DEGREES
SPINDLE RPM 12,000 RPM
SPINDLE HORSEPOWER 30 H.P.
TABLE SIZE 23.62 X 19.69 WIDTH
ATC 40 TOOLS (CAT40)
MACHINE SIZE H: 125.47 X W: 86.61 X L: 156.69
MACHINE MASS 28,660 LBS
MAZATROL MATRIX 2 CONTROL
40 (CAT40) TOOL MAGAZINE
12,000 RPM
WORK MEASURING SYSTEM RMP600
HINGE TYPE CHIP CONVEYOR REAR DISPOSAL
MAZAK SUPER FLOW S8
