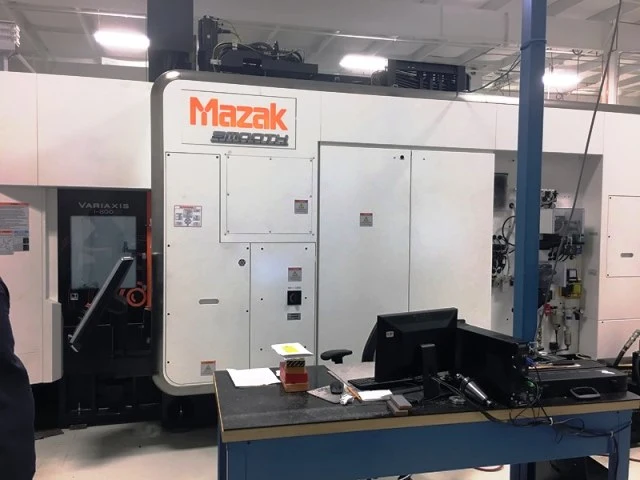

MAZAK VARIAXIS i-800 2APC INTELLIGENT/MULTI-TASKING MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
THIS 2016 VARIAXIS i-800/ 5X COMES WITH (2) 500mm (19.69") PALLETS, 80 TOOL ATC, CAT 50/ 10000 RPM SPINDLE, RENISHAW OMP 400 GAGE PROBE AND OMP 60M/ LP2 DEEP BORE PROBE, HI PRESSURE COOLANT THRU AND 80 TOOL DOUBLE MAGAZINES.
SPECIFICATIONS:
TABLE SIZE 31.5" X 24.8"
NUMBER OF PALLETS 2
MAX. WORKPIECE LOAD 2205 LBS.
MAX. WORKPIECE SIZE 39.37" X 19.69"
X - AXIS TRAVEL 28.74"
Y - AXIS TRAVEL 33.46"
Z - AXIS TRAVEL 22.05"
A - AXIS TRAVEL -120 + 30 DEGREES
C - AXIS TRAVEL 360,000 DEG.
RAPIDS X, Y, Z 1654 IPM
RAPID TRAVERSE A - AXIS 18000 DEGREES / MIN.
CUTTING FEED RATES 1654 X, Y . Z/ 984 IPM A, AND C
SPINDLE NOSE CAT 50
SPINDLE SPEED 10,000 RPM
TOOL MAGAZINE 80 ATC
MAIN MOTOR 50/40/30 HP AC
MAX. SPINDLE TORQUE 258 FT/LBS
MACHINE WEIGHT 43,297 LBS.
MAZAK SMOOTH X CONTROL
2 PALLET CHANGER - 500mm PALLETS
80 TOOL DOUBLE MAGAZINES
RENISHAW OMP 400 STRAIN GAGE PROBE SYSTEM
RENISHAW OMP 60M/LP2 DEEP BORE PROBE SYSTEM
RENISHAW CAPPS NC ON-MACHINE INSPECTION SOFTWARE PKG (5 AXIS)
RENISHAW CAPPS NC OFFLINE PROG PKG (5 AXIS)
RENISHAW ARTIFACT SOFTWARE FOR MACHINE
SCALE FEEDBACK SYSTEM FOR X, Y, Z AXIS
SCALE FEEDBACK SYSTEM FRO A, C AXIS
HI-PRESSURE COOLANT THRU SPINDLE - 213/1000 PSI
COOLANT TEMP CONTROL SYSTEM (WATER SOLUBLE)
WORKPIECE CLEANING COOLANT
MANUAL PULSE GENERATOR - PALM SIZE
WORK SETTING ERROR COMPENSATION
MAYFRAN CHIP CONVEYOR
ALL AVAILABLE MANUALS
