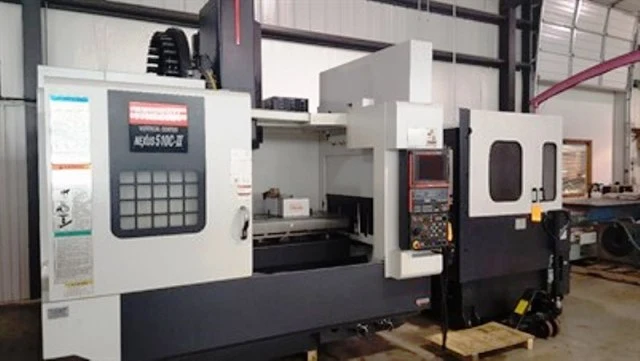

MAZAK VCN 510C W/2 PALLET CHANGER
Have one to sell?
ConditionUsed
1 available
THIS VCN 510C/ 2 PALLET MACHINE IS EQUIPPED WITH A MAZATROL MATRIX CONTROL, (2) FULL SIZED DRILLED AND TAPPED DIE PLATES, HIGH SMOOTHING, RENISHAW OMP 40 PART PROBE, TOOL PROBE AND 213 PSI COOLANT THRU.
SPECIFICATIONS:
TABLE SIZE / NUMBER OF PALLETS 51.18"X21.65" / 2 PLTS.
TABLE LOAD CAPACITY 2,646 LBS
X-AXIS TRAVEL 41.3"
Y-AXIS TRAVEL 20"
Z-AXIS TRAVEL 20"
SPINDLE TAPER CAT 40
SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR 10/30/CONT. MIN 25/20/10 HP
DIST. FROM TABLE TOP
TO SPINDLE NOSE 5.9" TO 25.98"
TOOL MAGAZINE CAPACITY 30 POSITION ATC
MAX. TOOL DIAM/LENGTH/WEIGHT 4.92"/13.8"/17 LBS.
TOOL CHANGE TIME 1.3 SEC
RAPID TRAVERSE RATES 1,417 IPM
MACHINE DIMENSIONS LXWXH 240" X 144" X 122"
MACHINE WEIGHT w/PALLET CHANGER 20,700 LBS
MAZATROL MATRIX CNC CONTROL
(2) FULL SIZE DRILLED AND TAPPED DIE PLATES
USED ONLY FOR FIXTURE PROVE OUT
HIGH SMOOTTHING CONTROL OPTION
RENISHAW OMP 40 WORK PROBE
8MB PROGRAM MEMORY
ADDITIONAL HALOGEN LIGHTING
AUTO ATLM
AUTO PECKING
AUTOMATIC PECKING CYCLE WITH LOAD MONITOR
COMPARISION STOP
COOLANT THRU THE SPINDLE
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
EIA STANDARD AND ADDITIONAL
EIA/ISO STANDARD PLUS ADDITIONAL
EXT-DATA I/O
FLOOD COOLANT 4.5 KG/ 30 LITERS
FULL ENCLOSURE
GEOMETRIC
GOO SLOPE CONSTANT
HELICAL AND SPIRAL INTERPOLATION
HIGH PRESURE 213 PSI COOLANT THRU THE SPINDLE SYSTEM
INCH/METRIC
POLAR COORDINATE INPUT
PROGRAM MEMORY EXPANSION
REMOTE PULSE GENERATOR
RENISHAW NON-CONTACT N/C 4
TOOL LENGTH MEASUREMENT
ROTATION
ROT-AXIS SHAPE COMP.
SAFETY COVER FOR PALLET CHANGER
SCALING
SHAPE COMPENSATION
SIGNAL TOWER
SPIRAL
SYNC. TAP
SYNC. TAPPING
THREAD
TILTED WORK PLANE
TOTAL COVER
TRANSFORMER
USB PORT
VARIABLE 600 SETS
WORKPIECE AIRBLAST
CHIP CONVEYOR
ALL AVAILABLE MANUALS
