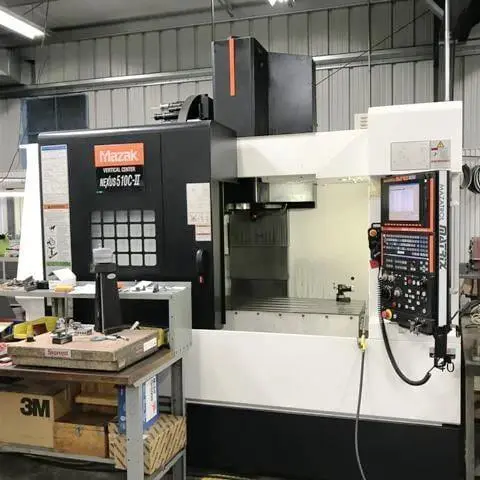

MAZAK VCN 510C-II

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
VCN 510C-II
Year:
2013
Stock #:
4855
Status:
For Sale

Description

THIS 2013 VCN 510C-II HAS A CAT 40/ 12000 RPM SPINDLE, 30 STATION ATC, 213 PSI COOLANT THRU AND A RENISHAW DUAL PROBING KIT OMP 60 w/ EIA INSPECTION PLUS.

X Travel41.3"1,049 mm
Y Travel20.08"510.03 mm
Z Travel20.08"510.03 mm
Spindle Speed12,000 RPM12000 rpm
Tool Capacity (ATC)3030
Table Size (W)51.1"1,297.9 mm
Table Size (L)21.6"548.64 mm
Main Spindle Motor25 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top5.9" TO 25.98"5.9" TO 25.98"
Coolant Thru High PressureYesYes
Hi Pressure Coolant System213 psi
Part ProbeYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
ControlCNC (MAZAK MATRIX)CNC (MAZAK MATRIX)

SPECIFICATIONS:
TABLE                  51.1” X 21.6”
TOOL CHANGER           30 TOOL SERVO DRIVEN MAGAZINE
SPINDLE                12,000 RPM
X AXIS TRAVELS         41.3”
Y AXIS TRAVELS         20.08”
Z AXIS TRAVELS         20.08”
SPINDLE MOTOR          25 HP
SPINDLE TAPER          CAT 40

MAZAK MATRIX CONTROL
MAZATROL/EIA G-CODE
DIRECT DRIVE SPINDLE
2 USB PORTS
LAN PORT
MULTITAP 3 PHASE TRANSFORMER
213 PSI COOLANT THROUGH SYSTEM
SYNCHRONOUS TAPPING
MAZACC-2D SOFTWARE (SHAPE COMP)
MAZACC-3D HIGH SPEED
RENISHAW DUAL PROBING KIT OMP 60 W/EIA INSPECTION PLUS
CHIP CONVEYOR & AUGER SYSTEM LEFT SIDE
