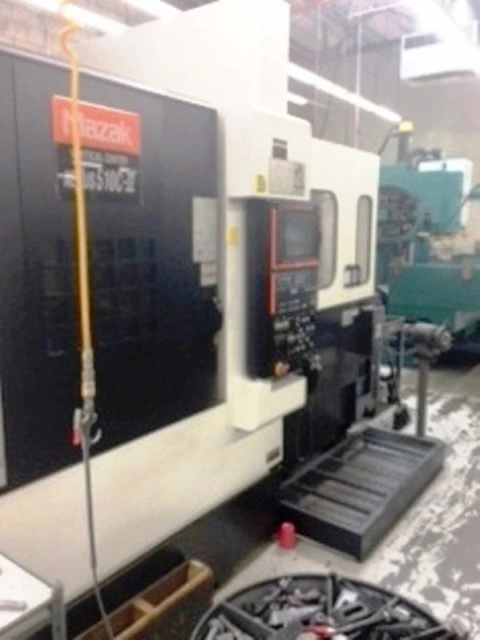

MAZAK VCN 510C-II W/AUTOMATIC PALLET CHANGER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
VCN 510C-II 2APC
Year:
2013
Stock #:
4782
Status:
For Sale
Serial #:
244181

Description

THIS 2013 MAZAK VCN 510C-II W/AUTOMATIC PALLET CHANGER HAS 2 PALLETS, MR250-RAM01 NC ROTARY TABLE, 1000 PSI COOLANT THRU, MATRIX 2 CONTROL AND DUAL PROBING KIT WITH INSPECTION PLUS.

X Travel41.3"1,049 mm
Y Travel20.08"510.03 mm
Z Travel20.08"510.03 mm
Spindle Speed12,000 RPM12000 rpm
Tool Capacity (ATC)3030
Table Size (W)51.18"1,300 mm
Table Size (L)21.65"549.91 mm
Main Spindle Motor25 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top5.9" TO 25.98"5.9" TO 25.98"
4 Axis Table Rotation.001 N/C Contouring 360000 Degrees.001 N/C Contouring 360000 Degrees
4th Axis Rotary Table Size9.7"246.38 mm
Coolant Thru High PressureYesYes
Hi Pressure Coolant System1000 psi
Part ProbeYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
Multiple PalletsYesYes
ControlCNC (Mazatrol Matrix 2)CNC (Mazatrol Matrix 2)
Weight15,600 LBS15,600 LBS

SPECIFICATIONS:
TABLE SIZE                51.18" X 21.65"
TABLE LOAD CAPACITY       2630 LBS.
SPINDLE NOSE TO TABLE TOP 5.90" - 25.98"
X - AXIS TRAVEL           41.3"
Y - AXIS TRAVEL           20.08"
Z - AXIS TRAVEL           20.07"
SPINDLE NOSE              CAT #40
SPINDLE SPEED             12,000 RPM
MAIN MOTOR                25 HP
RAPID TRAVERSE X, Z, Y,   1417, 1417, 1417 IPM
TOOL MAGAZINE             30 ATC
MAX TOOL DIA.             4.920"
MAXIMUM TOOL WEIGHT       17.64 LBS.
MAX TOOL LENGTH           13.78"
MACHINE WEIGHT            15,600 LBS.

MAZAK MATRIX 2 CNC CONTROL
2 PALLET
CHIP CONVEYOR
DUAL PROBING KIT OMP 60/OTS AA W/EIA INSPECTION PLUS
SYNCHRONIZED TAPPING G84.2 G84.3
MAX PROGRAM SIZE 8MB
GOO SLOPE CONSTANT
MAZACC-2D SOFTWARE (SHAPE COMPENSATION G61.1
4TH AXIS PREP FOR MR250-RAM01 NC ROTARY TABLE
1,000 PSI SUPERFLOW PREP
71 PSI THRU SPINDLE COOLANT
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOLING
