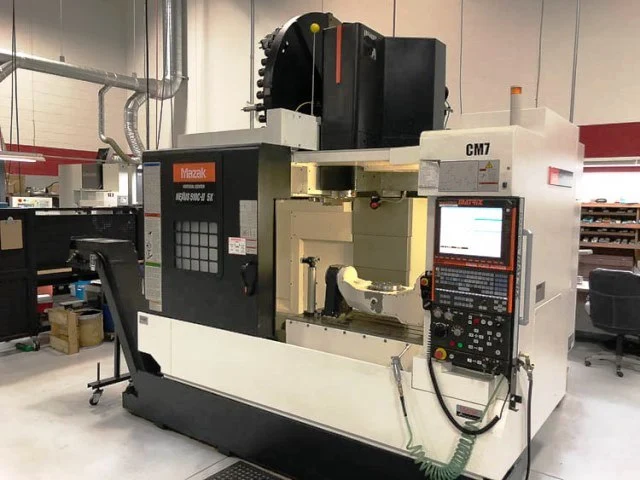

THIS 2013 VCN 510C/ 5 AXIS COMES WITH A TRUNION TABLE, MATRIX CONTROL, RENISHAW TOOL AND PART PROBE, DOUBLE CHIP AUGERS AND CHIP CONVEYOR.
MAZAK VCN 510C-II/ 5 AXIS
NEW 2013
SPECIFICATIONS:
X-AXIS TRAVELS 41.03"
Y-AXIS TRAVELS 20.05"
Z-AXIS TRAVELS 20.05"
TABLE SIZE 51.18"
TABLE LOAD CAPACITY 2,600 LBS
DISTANCE COLUMN SURFACE
TO SPINDLE CENTER 22.67"
5-AXIS TABLE SPECIFICATIONS:
MAXIMUM TABLE LOAD 440 LBS
HEIGHT 17.91"
MAXIMUM RPM TILT 40 RPM
MAXIMUM RPM ROTATION 50 RPM
RESOLUTION .000001 DEGREE
A/C AXIS TRAVEL +/- 120/360 DEGREE
RAPID TRAVERSE X,Y & Z 1,417 IPM
AUTOMATIC TOOL CHANGER 48
TOOL CHANGE TIME (CHIP TO CHIP) 2.9 SEC.
SPINDLE HP 25 HP
SPINDLE TAPER CAT #40
SPINDLE SPEED RANGE 12,000 RPM
APPROXIMATE MACHINE WEIGHT 16,380
EQUIPPED WITH:
MAZAK MAZATROL MATRIX CNC CONTROL
MAZAK VOICE CONTROL
EIA / ISO IN ADDITION TO CONVERSATIONAL PROGRAMMING
TRUNION TABLE
RENISHAW TOOL AND PART PROBE
DOUBLE CHIP AUGERS
CHIP CONVEYOR
