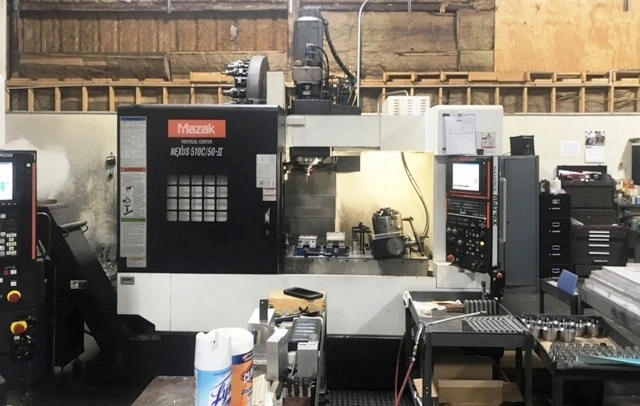

MAZAK VCN 510C-II /50 TAPER 4 AXIS

MAZAK VCN 510C/50
NEW 2013

SPECIFICATIONS:
TABLE SIZE                51.18" X 21.65"
TABLE LOAD CAPACITY       2630 LBS.
SPINDLE NOSE TO TABLE TOP 5.90" - 25.98"
X - AXIS TRAVEL           41.3"
Y - AXIS TRAVEL           20.87"
Z - AXIS TRAVEL           20.07"
SPINDLE NOSE              CAT 50
SPINDLE SPEED             6000 RPM
MAIN MOTOR                25 HP
RAPID TRAVERSE RATE, X, Y, Z 1417, 1417, 1417 IPM
TOOL MAGAZINE             30 ATC
MAX TOOL DIA.             4.920"
MAXIMUM TOOL WEIGHT       17.64 LBS.
MAX TOOL LENGTH           13.78"
MACHINE WEIGHT            16,600 lbs.
