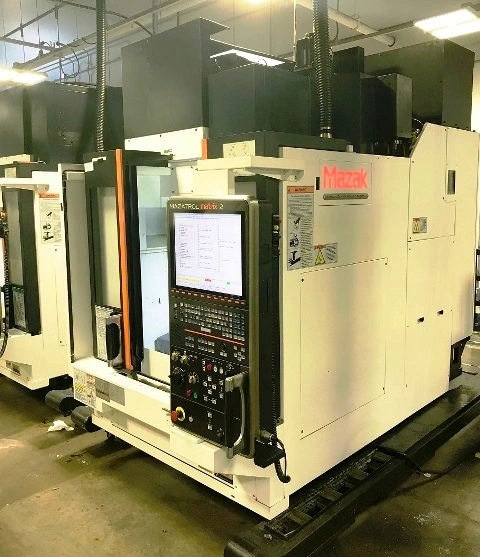

MAZAK VCN COMPACT (VCC) 5 AXIS
Have one to sell?
ConditionUsed
1 available
THIS COMPACT VCN/ VCC IS EQUIPPED WITH MATRIX 2 CONTROL, 5 AXIS SPLINE, 5 AXIS TOOL LENGTH, SIMULTANEOUS 5 AXIS AND A RT-100 5TH AXIS ROTARY TABLE.
SPECIFICATIONS:
X AXIS 19.6"
Y AXIS 16.9"
Z AXIS 20.08"
A AXIS +/- 140 DEG
B AXIS +/- 360 DEG
ROTARY TABLE SIZE RT100 3.94"
SPINDLE SPEEDS 20,000 RPM
ATC 30
MAIN MOTOR DRIVE 25 HP
MAZATROL MATRIX 2 CNC CONTROL
ROLLER DRIVE
5 AXIS SPLINE
SIMULTANEOUS 5 AXIS
5 AXIS TOOL LENGTH
ROT-AXIS SHAPE COMP
RT-100 5TH AXIS ROTARY TABLE
B AXIS +/- 360 DEG
MAYFRAN CHIP CONVEYOR
THIS COMPACT VCN/ VCC IS EQUIPPED WITH MATRIX 2 CONTROL, 5 AXIS SPLINE, 5 AXIS TOOL LENGTH, SIMULTANEOUS 5 AXIS AND A RT-100 5TH AXIS ROTARY TABLE.
Imperial
| X Travel | 19.6" |
| Y Travel | 16.9" |
| Z Travel | 20.08" |
| Spindle Speed | 20000 rpm |
| Tool Capacity (ATC) | 30 |
| Main Spindle Motor | 25 hp |
| Spindle Taper | CAT 40 |
| 5th Axis Rotary Table Size | 3.94" |
| 5 Axis Programmable Axis's | Full 5 Axis's Contouring |
| Table Type A-Axis Trunnion Tilt Range | +/- 140 DEG |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC (Mazatrol Matrix 2) |
SPECIFICATIONS:
X AXIS 19.6"
Y AXIS 16.9"
Z AXIS 20.08"
A AXIS +/- 140 DEG
B AXIS +/- 360 DEG
ROTARY TABLE SIZE RT100 3.94"
SPINDLE SPEEDS 20,000 RPM
ATC 30
MAIN MOTOR DRIVE 25 HP
MAZATROL MATRIX 2 CNC CONTROL
ROLLER DRIVE
5 AXIS SPLINE
SIMULTANEOUS 5 AXIS
5 AXIS TOOL LENGTH
ROT-AXIS SHAPE COMP
RT-100 5TH AXIS ROTARY TABLE
B AXIS +/- 360 DEG
MAYFRAN CHIP CONVEYOR
