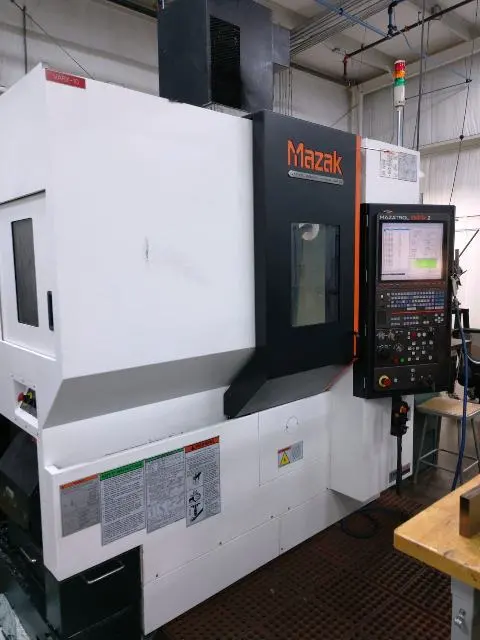

WELL MAINTAINED VCU 400A/ 5X IS A SMALL 5 AXIS VERTICAL WITH B & C AXIS AND TRAVELS OF 19.88 X 15.75 X 20.07, MATRIX 2 CONTROL AND A CAT 40/ 12000 RPM OPTION.
SPECIFICATIONS:
TABLE SIZE 15.75"
MAX WORKPIECE SIZE 15.75" x 15.75"
MAX WORKPIECE HEIGHT 12"
X AXIS TRAVEL 19.88"
Y-AXIS TRAVEL 15.75"
Z AXIS TRAVEL 20.07"
B AXIS TRAVEL 0.0001 +95 ~ -45 DEGREES
C AXIS TRAVEL 0.0001 +/- 360 DEGREES
SPINDLE NOSE TO TABLE 4.53"/ 24.61"
MAX TABLE WEIGHT 441 LBS
SPINDLE SPEED/MOTOR (30 min) 12,000 RPM/15HP (OPTION 10K-STD)
SPINDLE TAPER CAT 40
RAPID TRAVERSE (X/Y/Z) 945IPM
NUMBER OF TOOLS 30
MAX TOOL DIAMETER 3.15"
W/ NO ADJACENT TOOLS 4.92"
TOOL SHANK BIG PLUS 40
DIMENSIONS 84.65" x 124.21" x 125.03
MACHINEWEIGHT 14,330 LBS
MAZATROL MATRIX 2 CONTROL
12,000 RPM SPINDLE OPTION
30 ATC
AUTO PECKING W/LOAD DETECT
SYCH TAP
TOOL TIP CONTROL
TOOL RADIUS COMP
G00 SLOPE CONSTANT
MAZAAC 3 D
HIGH SPEED SOFTWARE
SHAPE COMP FOR ROTARY AXIS
5 AXIS SPLINE INTERPOLATION
213 PSI COOLANTTHRU
MAZAK VISUAL TOOL ID SYSTEM
RENISHAW PART PROBE - RMP 600
RTS TOOL PROBE
CHIP CONVEYOR HINGE STYLE
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
