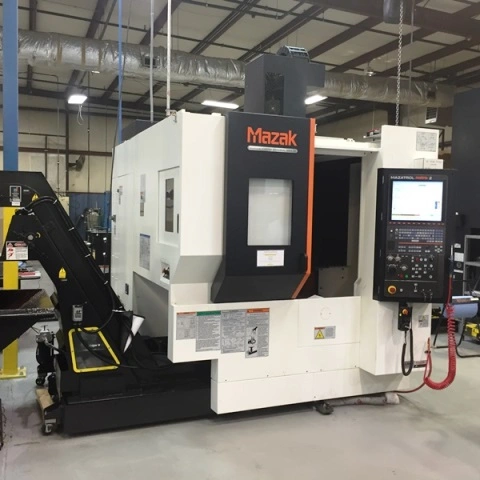

MAZAK VCU 500 /5X

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
VCU 500
Year:
2014
Stock #:
4122
Status:
For Sale
Serial #:
249367

Description

THIS 2014 VCU 500/ 5X IS A 5 AXIS VERTICAL MACHINING CENTER WITH B & C AXIS FOR ADDITIONAL PRECISION & ACCURACY. IT HAS A MATRIX 2 CONTROL, DUAL PROBES AND 1000 PSI COOLANT THRU.

X Travel19.88"504.95 mm
Y Travel19.88"504.95 mm
Z Travel20.07"509.78 mm
Spindle Speed12,000 RPM12000 rpm
Tool Capacity (ATC)3030
Table Size (W)19.68"499.87 mm
Table Size (L)19.68"499.87 mm
Main Spindle Motor15 hp
Spindle TaperCAT 40CAT 40
4 Axis Table Rotation.001 N/C Contouring 360000 Degrees.001 N/C Contouring 360000 Degrees
5 Axis Programmable Axis'sFull 5 Axis's ContouringFull 5 Axis's Contouring
Table Type C-Axis Table Rotation.001 N/C Contouring 360000 Degrees.001 N/C Contouring 360000 Degrees
Coolant Thru High PressureYesYes
Hi Pressure Coolant System1000 psi
Part ProbeYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
ControlCNC (MAZAROL MATRIX 2)CNC (MAZAROL MATRIX 2)
Dimensions84" X 124" X 125"84" X 124" X 125"
Weight14,300 LBS14,300 LBS

SPECIFICATIONS:
X AXIS TRAVEL                   19.88"
Y AXIS TRAVEL                   19.88"
Z AXIS TRAVEL                   20.07"
TABLE SIZE                      19.68"
MAX WORKPIECE SIZE              19.68" X 19.68"
MAX WORKPIECE HEIGHT            12"
SPINDLE TAPER CAT               40
SPINDLE SPEED/MOTOR             12,000 RPM/(30 min) 15HP/(10 MIN)
                                20HP (5 MIN) 25 HP
TOOLS                           30
B-AXIS TRAVEL
      (TABLE TILTING: INDEXING  0.0001°) + 95° ~ -45°
C-AXIS TRAVEL
     (TABLE ROTATION: INDEXING  0.0001°). +/- 360°
RAPID TRAVERSE (X/Y/Z)          1181IPM
MACHINE DIMS                    84" X 124" X 125

MATRIX 2 CNC CONTROL
G37 AUTOMATIC TOOL-LEIGH
G68.2 G68.3 TILTED WORK PLANE
300 PAIRS WORK PIECE COORDINATE
G122 POLAR COORDINATE
EIA PATTERN CYCLE G34.1,G35,G36,G37.1
MAZACC 2D SOFTWARE
EIA/ISO 5 AXIS FUCTION SIMULANEOUS
ABSOLUTE ENDCODER SYSTEMS.
19.68” (500MM) TABLE DIAMETER
30 TOOL MAGAZINE
FOUNDATION KIT (PLATES)
COMPLETE COOLANT SYSTEMS
COVER COOLANT
TOP COVER
12000 RPM SPINDLE
AIR THRU SPINDLE WHILE RUNNING
1000 PSI THRU COOLANT PREP
MAZAK SUPER FLOW T8 1000 PSI HIGH PRESURE COOLANT
MT CONNECT ADAPTER SOFTWARE
DUAL PROBES SPINDLE AND TOOL SETTER RMP600/RTS-AA
SYNC TAP
8MB MAX PROGRAM SIZE STANDARD 2MB
G61.2  5 AXIS SPLINE
SHAPE COMP. FOR ROTARY AXIS
TOOL RADIUS COMP.
TOOL TIP CONTROL
WORK SETTING ERROR COMP
HIGH SMOOTHING CONTROL
CONCEP 2000 DUAL CHIP CONVEYOR
ALL AVAILABLE MANUALS
