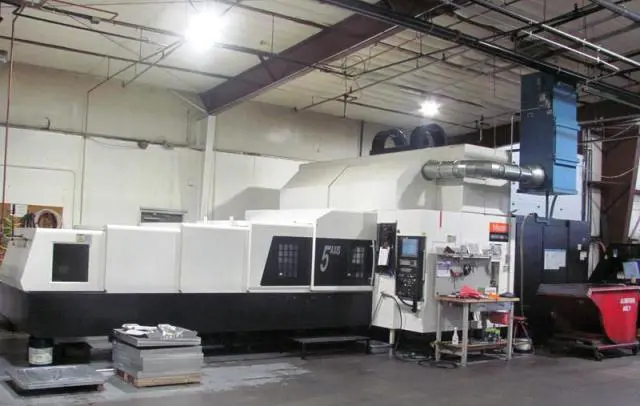

MAZAK VORTEX 1400 /160M 5 AXIS
Have one to sell?
ConditionUsed
1 available
THE VORTEX 1400/ 160M 5 AXIS VERTICAL HAS TRAVELS OF 165 X 55 X 24, RENISHAW RMP 600 PROBE, MAZAK 5 AXIS CONTROL, HSK 100/ 12000 RPM SPINDLE.
SPECIFICATIONS:
X AXIS TRAVELS 165.35"
Y AXIS TRAVELS 55.12"
Z AXIS TRAVELS 24.02"
A AXIS TRAVELS +/- 40 DEG
B AXIS TRAVELS +/- 40 DEG
TABLE SIZE 157.5" TO 49.2"
SPINDLE AC 50 HP
SPINDLE HSK 100
TOOL CHAIN MAG 60
SPINDLE SPEED 12000 RPM
MAZAK FX CONTROL
BALL SCREW COOLER FOR X-Y-Z- AXIS
A AXIS TRAVELS/ +/- 40 DEG
B AXIS TRAVELS/ +/- 40 DEG
AUTO TOOL LENGTH MEASUREMENT
RENISHAW PART PROBE
TOOL RETRACTS & RECOVERS
TOOL OFFSET MEMORY C
CHIP CONVEYOR RIGHT DISPOSAL
ALL STD. EQUIPPED
THE VORTEX 1400/ 160M 5 AXIS VERTICAL HAS TRAVELS OF 165 X 55 X 24, RENISHAW RMP 600 PROBE, MAZAK 5 AXIS CONTROL, HSK 100/ 12000 RPM SPINDLE.
Imperial
| X Travel | 165.35" |
| Y Travel | 55.12" |
| Z Travel | 24.02" |
| Spindle Speed | 12000 rpm |
| Tool Capacity (ATC) | 60 |
| Table Size (W) | 157.5" |
| Table Size (L) | 49.2" |
| Main Spindle Motor | 50 hp |
| Spindle Taper | HSK 100 |
| Table Type A-Axis Trunnion Tilt Range | +/- 40 DEG |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 213 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC (MAZAK FX (FIVE AXIS)) |
| Weight | 73,000 LBS |
SPECIFICATIONS:
X AXIS TRAVELS 165.35"
Y AXIS TRAVELS 55.12"
Z AXIS TRAVELS 24.02"
A AXIS TRAVELS +/- 40 DEG
B AXIS TRAVELS +/- 40 DEG
TABLE SIZE 157.5" TO 49.2"
SPINDLE AC 50 HP
SPINDLE HSK 100
TOOL CHAIN MAG 60
SPINDLE SPEED 12000 RPM
MAZAK FX CONTROL
BALL SCREW COOLER FOR X-Y-Z- AXIS
A AXIS TRAVELS/ +/- 40 DEG
B AXIS TRAVELS/ +/- 40 DEG
AUTO TOOL LENGTH MEASUREMENT
RENISHAW PART PROBE
TOOL RETRACTS & RECOVERS
TOOL OFFSET MEMORY C
CHIP CONVEYOR RIGHT DISPOSAL
ALL STD. EQUIPPED
