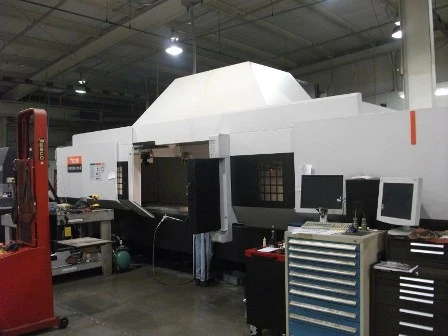

MAZAK VORTEX 815 /120 5 AXIS
Have one to sell?
ConditionUsed
1 available
THE VORTEX 815/ 120 IS A 5 AXIS VERTICAL WITH TRAVELS OF 120 X 32 X 24, 60 TOOL MAGAZINE, 213 PSI COOLANT THRU, A FANUC 31i 5 AXIS CONTROL WITH A CAT 50/ 13000 RPM SPINDLE.
SPECIFICATIONS:
TABLE SIZE 31.9" X 127.56"
TABLE TRAVEL X - AXIS 120"
Y - AXIS 31.89"
Z - AXIS 24.02"
A - AXIS -40 - +40 DEGREES
B - AXIS -40 - +40 DEGREES
DISTANCE FROM SPINDLE NOSE TO TABLE TOP 5.00"- 29.02"
TABLE LOAD CAPACITY 6,600 LBS.
RAPID TRAVERSE RATES 945 IPM (X) 945 (Y)
787 Z, IPM
RAPID TRAVERSE RATES 3600°/ min
SPINDLE NOSE CAT #50 TAPER
SPINDLE SPEED 25-13,000 RPM
SPINDLE H.P. 50/40 HP AC
TOOL MAGAZINE 60 ATC
MAX TOOL DIA. WHEN ADJACENT EMPTY 8.27"
MAX TOOL LENGTH 14.96"
MAX TOOL WEIGHT 44 LBS.
MACHINE WEIGHT 42,200 LBS.
FANUC 31i CNC CONTROL
A - AXIS/ -40 - +40 DEGREES
B - AXIS -40 - +40 DEGREES
ATLMS
60 ATC
NIAGRA COOLANT
HIGH PRESSURE COOLANT 213 PSI
13,000 RPM HSK SPINDLE/ AS100
NUMBER OF REGISTERABLE PROGRAM EXPANSION
CHIP CONVEYOR CYLINDRICAL INTERPOLATION
3D CIRCULAR INTERPOLATION
TOOL RETRACT AND RECOVER
TOOL OFFSET MEMORY C
INTERUPTION TYPE CUSTOM MACRO
DATA SERVER W/O ATA CARD MEMORY
DATA SERVER BUFFER MODE
THE VORTEX 815/ 120 IS A 5 AXIS VERTICAL WITH TRAVELS OF 120 X 32 X 24, 60 TOOL MAGAZINE, 213 PSI COOLANT THRU, A FANUC 31i 5 AXIS CONTROL WITH A CAT 50/ 13000 RPM SPINDLE.
Imperial
| X Travel | 120" |
| Y Travel | 31.89" |
| Z Travel | 24.02" |
| Spindle Speed | 13000 rpm |
| Tool Capacity (ATC) | 60 |
| Table Size (W) | 127.56" |
| Table Size (L) | 31.9" |
| Main Spindle Motor | 50 hp |
| Spindle Taper | CAT 50 |
| 5 Axis Programmable Axis's | Full 5 Axis's Contouring |
| Table Type A-Axis Trunnion Tilt Range | -40 - +40 DEGREES |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 213 psi |
| Control | CNC (FANUC 31i - 5X) |
| Weight | 42,200 LBS |
SPECIFICATIONS:
TABLE SIZE 31.9" X 127.56"
TABLE TRAVEL X - AXIS 120"
Y - AXIS 31.89"
Z - AXIS 24.02"
A - AXIS -40 - +40 DEGREES
B - AXIS -40 - +40 DEGREES
DISTANCE FROM SPINDLE NOSE TO TABLE TOP 5.00"- 29.02"
TABLE LOAD CAPACITY 6,600 LBS.
RAPID TRAVERSE RATES 945 IPM (X) 945 (Y)
787 Z, IPM
RAPID TRAVERSE RATES 3600°/ min
SPINDLE NOSE CAT #50 TAPER
SPINDLE SPEED 25-13,000 RPM
SPINDLE H.P. 50/40 HP AC
TOOL MAGAZINE 60 ATC
MAX TOOL DIA. WHEN ADJACENT EMPTY 8.27"
MAX TOOL LENGTH 14.96"
MAX TOOL WEIGHT 44 LBS.
MACHINE WEIGHT 42,200 LBS.
FANUC 31i CNC CONTROL
A - AXIS/ -40 - +40 DEGREES
B - AXIS -40 - +40 DEGREES
ATLMS
60 ATC
NIAGRA COOLANT
HIGH PRESSURE COOLANT 213 PSI
13,000 RPM HSK SPINDLE/ AS100
NUMBER OF REGISTERABLE PROGRAM EXPANSION
CHIP CONVEYOR CYLINDRICAL INTERPOLATION
3D CIRCULAR INTERPOLATION
TOOL RETRACT AND RECOVER
TOOL OFFSET MEMORY C
INTERUPTION TYPE CUSTOM MACRO
DATA SERVER W/O ATA CARD MEMORY
DATA SERVER BUFFER MODE
