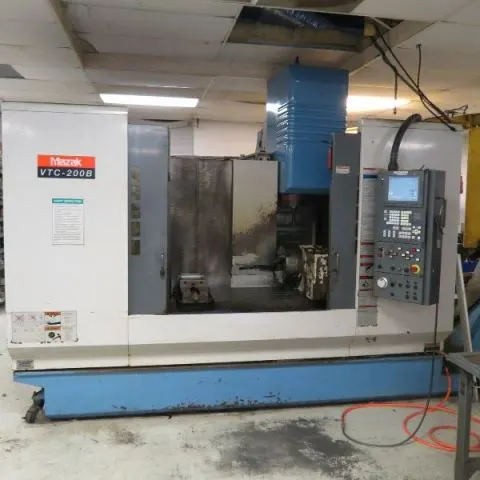

MAZAK VTC 200B /4 AXIS
Have one to sell?
ConditionUsed
1 available
THIS VTC 200B HAS A CAT 40/ 10000 RPM SPINDLE, FUSION 640 CONTROL, MAZAK 4TH AXIS ROTARY RS-320RAM01 WITH 10.75" CHUCK AND COOLANT THRU.
SPECIFICATIONS:
TABLE SIZE 57.48" X 20.08"
TABLE LOAD CAPACITY 1760 LBS
X AXIS TRAVEL 44.09"
Y AXIS TRAVEL 20.08"
Z AXIS TRAVEL 20.08"
RAPID TRAVERSE RATES (X,Y,Z) 1181 IPM
MAGAZINE CAPACITY 30 ATC
SPINDLE NOSE CAT#40
SPINDLE SPEED 10,000 RPM
MAIN MOTOR 20 HP
MAX. TOOL LENGTH / WEIGHT 13.78" / 17.6 LBS.
FLOOR SPACE W/CHIP CONVEYOR 170" X 113" X 108"
WEIGHT 13,200 LBS
MAZATROL FUSION 640M
30 ATC SERVO
COOLANT THROUGH SPINDLE - 79 PSI
AUTOMATIC TOOL LENGTH MEASUREMENT
MAZAK 4th AXIS ROTARY RS-320RAM01
TABLE PACKAGE 10.75", 3 JAW MANUAL CHUCK
FULL LENGTH INVERTED CHIP CONVEYOR
ALL AVAILABLE MANUALS
THIS VTC 200B HAS A CAT 40/ 10000 RPM SPINDLE, FUSION 640 CONTROL, MAZAK 4TH AXIS ROTARY RS-320RAM01 WITH 10.75" CHUCK AND COOLANT THRU.
Imperial
| X Travel | 44.09" |
| Y Travel | 20.08" |
| Z Travel | 20.08" |
| Spindle Speed | 10000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 57.48" |
| Table Size (L) | 20.08" |
| Main Spindle Motor | 20 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 7.09″ – 27.17″ |
| 4th Axis Rotary Table Size | 10.75" |
| Coolant Thru | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC (MAZATROL FUSION 640M) |
| Dimensions | 170" X 113" X 108" |
| Weight | 13,200 LBS |
SPECIFICATIONS:
TABLE SIZE 57.48" X 20.08"
TABLE LOAD CAPACITY 1760 LBS
X AXIS TRAVEL 44.09"
Y AXIS TRAVEL 20.08"
Z AXIS TRAVEL 20.08"
RAPID TRAVERSE RATES (X,Y,Z) 1181 IPM
MAGAZINE CAPACITY 30 ATC
SPINDLE NOSE CAT#40
SPINDLE SPEED 10,000 RPM
MAIN MOTOR 20 HP
MAX. TOOL LENGTH / WEIGHT 13.78" / 17.6 LBS.
FLOOR SPACE W/CHIP CONVEYOR 170" X 113" X 108"
WEIGHT 13,200 LBS
MAZATROL FUSION 640M
30 ATC SERVO
COOLANT THROUGH SPINDLE - 79 PSI
AUTOMATIC TOOL LENGTH MEASUREMENT
MAZAK 4th AXIS ROTARY RS-320RAM01
TABLE PACKAGE 10.75", 3 JAW MANUAL CHUCK
FULL LENGTH INVERTED CHIP CONVEYOR
ALL AVAILABLE MANUALS
