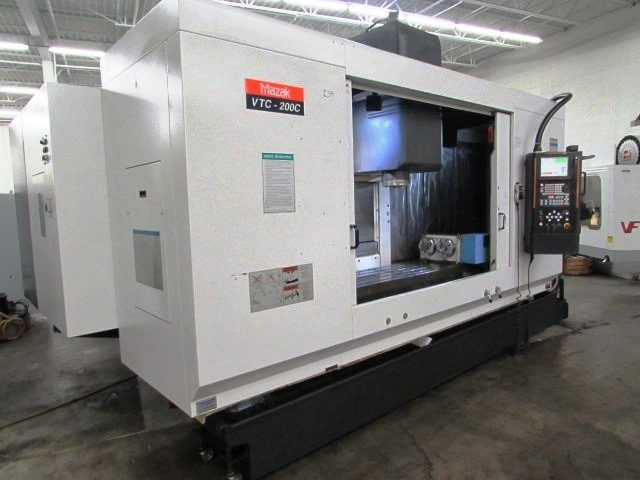

MAZAK VTC 200C 4-AXIS VERTICAL MACHINING CENTER WITH DUAL ROTARY TABLES
Have one to sell?
ConditionUsed
1 available
THIS VTC 200C COMES WITH DUAL SPINDLE 4-AXIS PROGRAMMABLE ROTARY TABLES, FUSION 640MN CONTROL, 48 STATION ATC AND COOLANT THRU SPINDLE.
SPECIFICATIONS:
TABLE SIZE 77.48" X 20.08"
MACHINE TRAVELS (X/Y/Z) 66" X 20.08" X 20.08"
SPINDLE TO TABLE DISTANCE 7.09" - 27.17"
SPINDLE CENTER TO
COLUMN DISTANCE 21.65"
TABLE CAPACITY 1760 LBS.
SPINDLE TAPER CAT 40
SPINDLE SPEEDS 0-10,000 RPM
RAPID TRAVERSE RATE (X/Y/Z) 1181 IPM
MAXIMUM CUTTING FEED RATE 697 IPM
TOOL CHANGER STYLE CAROUSEL
TOOL CHANGER CAPACITY 48 STATIONS
MAX TOOL WEIGHT 17 LBS
SPINDLE DRIVE 20 HP
APPROXIMATE MACHINE DIMENSIONS 178"L X 132"W X 111"H
APPROXIMATE WEIGHT 16000 LBS.
CHIP CONVEYOR AND TANK 213X40X55/1000#
ELECTRICS 230/440 VOLT 3 PHASE
CURRENTLY WIRED 440 VOLT
MAZATROL FUSION 640MN CNC CONTROL
HYTEC SPX DUAL SPINDLE 4-AXIS PROGRAMMABLE
ROTARY TABLE (8" CHUCKS,7" BETWEEN CENTERS)
10,000 MAX RPM SPINDLE
48 STATION AUTOMATIC TOOL CHANGER
THRU-SPINDLE COOLANT
RIGID TAPPING
FLOPPY DISK DRIVE
MAYFRAN CHIP CONVEYOR
REMOTE JOG HANDWHEEL
MANUALS & SCHEMATICS
