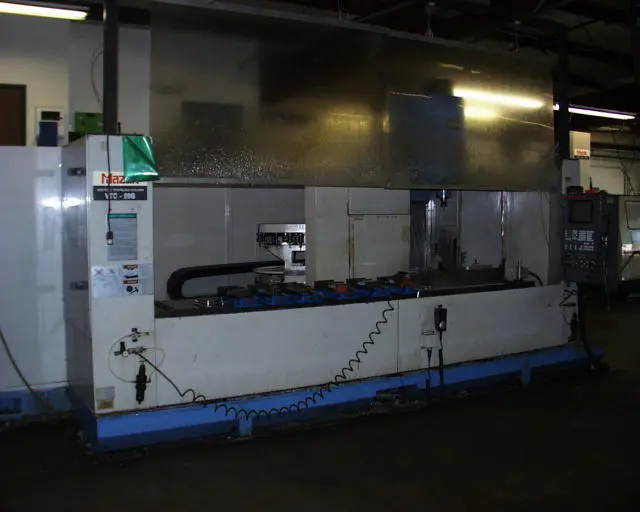

MAZAK VTC 20G
Have one to sell?
ConditionUsed
1 available
THE VTC 20G HAS TRAVELS OF 144 X 20 X 26. A CAT 40/ 8000 RPM SPINDLE WITH MAZATROL M-PLUS CONTROL.
SPECIFICATIONS:
TABLE SIZE 20.1" X 154.33"
TABLE TRAVEL X - AXIS 144"
Y - AXIS 20.08"
Z - AXIS 26"
DISTANCE FROM SPINDLE NOSE TO TABLE TOP 6.1"-32"
TABLE LOAD CAPACITY 4,600 LBS.
RAPID TRAVERSE RATES X/Y/Z 630/787/590 IPM
SPINDLE NOSE CAT # 40
SPINDLE SPEED 8,000 RPM
TOOL MAGAZINE (SERVO DRIVEN) 24 ATC
MAX TOOL DIA. 3.14"/4.33"
MAX TOOL LENGTH 13.8"
MAX TOOL WEIGHT 17.64 LBS.
MAIN MOTOR 15 HP AC
MACHINE WEIGHT 26,800 LBS
MAZATROL M-PLUS CNC CONTROL
ATLM
SERVO CONTROLLED TOOL CHANGER
AUTO TOOL LENGTH MEASUREMENT
TOOL BREAKAGE DETECTION
SYNCHRONIZED TAPPING
ALL AVAILABLE MANUALS
THE VTC 20G HAS TRAVELS OF 144 X 20 X 26. A CAT 40/ 8000 RPM SPINDLE WITH MAZATROL M-PLUS CONTROL.
Imperial
| X Travel | 144" |
| Y Travel | 20.08" |
| Z Travel | 26" |
| Spindle Speed | 8000 rpm |
| Tool Capacity (ATC) | 24 |
| Table Size (W) | 154.33" |
| Table Size (L) | 20.08" |
| Main Spindle Motor | 15 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 6.1"-32" |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC (MAZATROL M-PLUS) |
| Weight | 26,800 LBS |
SPECIFICATIONS:
TABLE SIZE 20.1" X 154.33"
TABLE TRAVEL X - AXIS 144"
Y - AXIS 20.08"
Z - AXIS 26"
DISTANCE FROM SPINDLE NOSE TO TABLE TOP 6.1"-32"
TABLE LOAD CAPACITY 4,600 LBS.
RAPID TRAVERSE RATES X/Y/Z 630/787/590 IPM
SPINDLE NOSE CAT # 40
SPINDLE SPEED 8,000 RPM
TOOL MAGAZINE (SERVO DRIVEN) 24 ATC
MAX TOOL DIA. 3.14"/4.33"
MAX TOOL LENGTH 13.8"
MAX TOOL WEIGHT 17.64 LBS.
MAIN MOTOR 15 HP AC
MACHINE WEIGHT 26,800 LBS
MAZATROL M-PLUS CNC CONTROL
ATLM
SERVO CONTROLLED TOOL CHANGER
AUTO TOOL LENGTH MEASUREMENT
TOOL BREAKAGE DETECTION
SYNCHRONIZED TAPPING
ALL AVAILABLE MANUALS
