MAZAK AJV 18N W/2 PALLET CHANGER
Have one to sell?
ConditionUsed
1 available

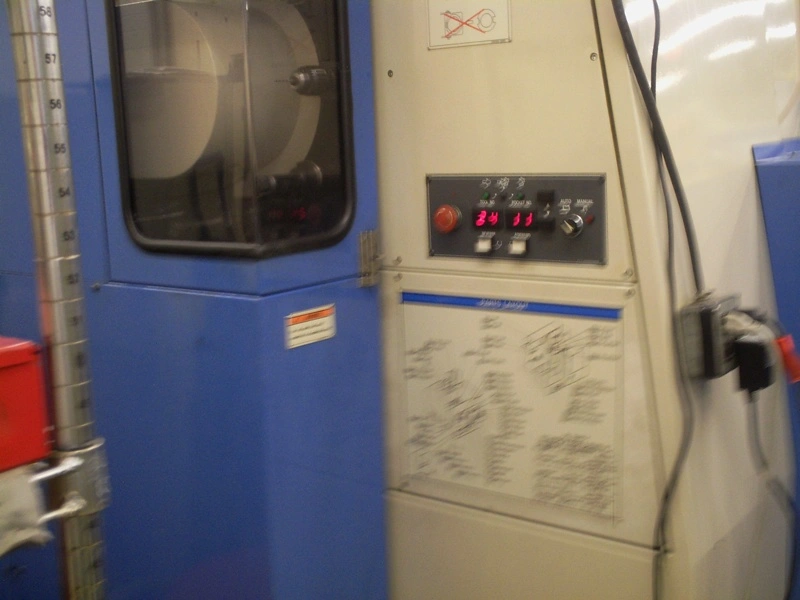

THIS 2 PALLET AJV 18 IS A CAT 40/ 10000 RPM VERTICAL WITH A 30 STATION ATC AND RENISHAW MP8 PROBE.
SPECIFICATIONS
X AXIS TRAVEL 22.05"
Y AXIS TRAVEL 16.14"
Z AXIS TRAVEL 15.75"
TABLE SIZE 35.43” X 16.14"
DISTANCE NOSE TO SPINDLE 5.91" ~ 21.65"
DISTANCE BETWEEN COLUMNS 18.90"
SPINDLE TAPER CAT40
MAXIMUM TABLE LOAD 660 LBS.
SPINDLE SPEED 100 ~ 10,000 RPM
RAPID TRAVERSE RATES 1180 IPM
*NUMBER OF TOOLS 30 ATC
MAX TOOL LENGTH / WEIGHT 13.19” / 17.6 LBS
MAIN MOTOR 12 HP AC
MACHINE DIMENSIONS 93” X 89.01” X 112”
MACHINE WEIGHT W/2-PALLET CHANGER 11,000 LBS
MAZATROL M-32 CONTROL
2-PALLET CHANGER
RENISHAW MP8 PROBE FOR WORK PIECE COORDINATES
AUTOMATIC POWER OFF
AUTOMATIC TOOL LENGTH MEASUREMENT
COOLANT SYSTEM AND GUARDS
TOOL BREAKAGE RECOVERY
TOOL LIFE MANAGEMENT
ADAPTIVE FEED RATE CONTROL
AIRBLAST SYSTEM
PROGRAM LOCKOUT KEYS
ALL AVAILABLE MANUALS
EXCELLENT CONDITION WITH FULL PERIODIC MAINTENANCE RECORDS.
HAS ONLY MACHINE NON-FERROUS METALS.
MOSTLY LIGHT CUTS IN ALUMINUM.
BOTH TABLES HAVE HAD ALUMINUM SUB PLATES BOLTED ON THE SINCE DAY 1. 1.
