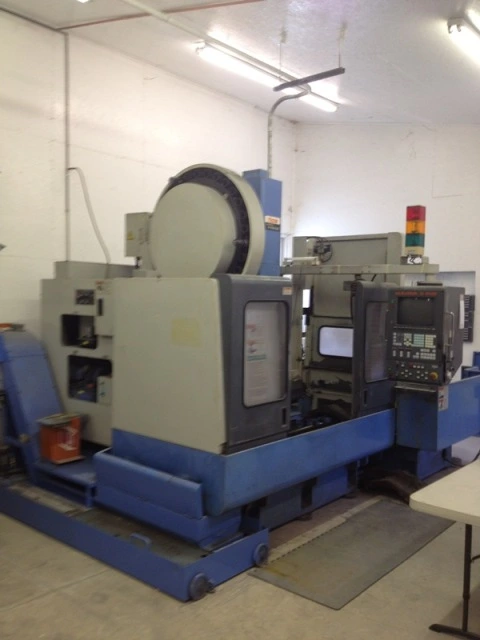

MAZAK V 414/32 W/2 PALLET CHANGER

SPECIFICATIONS:
TABLE SIZE                  43.3" X 16.14"
TABLE LOAD CAPACITY         1,100 LBS
X AXIS TRAVEL               32.00"
Y AXIS TRAVEL               16.14"
Z AXIS TRAVEL               18.11"
NOSE TO TABLE TOP           5.91” - 24.02”
SPINDLE SPEED RANGE         50 – 7,000 RPM
SPINDLE TAPER               NO. 40
RAPID TRAVERSE RATE (X,Y/Z) 945 IPM / 708 IPM
TOOL SHANK CONFIGURATION  CAT #40
TOOL CAPACITY    30 TOOL ATC
TOOL CHANGE TIME (CHIP TO CHIP)  5.5 SECONDS
MAX. TOOL LENGTH / WEIGHT  13.7 / 22 LBS.
SPINDLE MOTOR     20 HP 30 MIN / 15 HP CONT.
FLOOR SPACE    123” X 112” X 96”
WEIGHT     14,300 LBS
