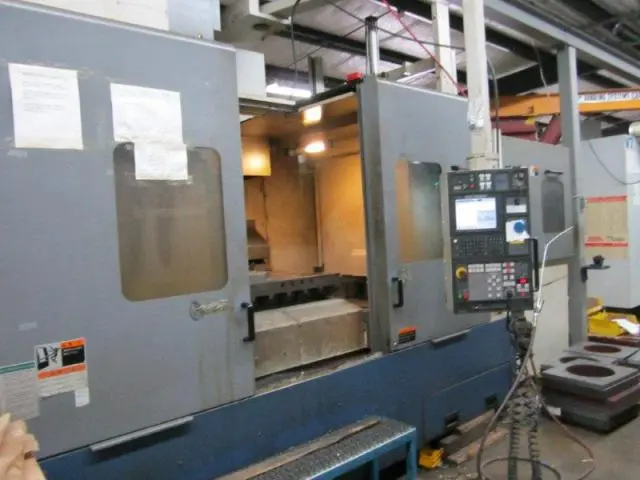

MORI SEIKI MV65 3/APC VERTICAL MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MORI SEIKI
Model:
MV 65 3APC
Year:
2001
Stock #:
3095
Status:
For Sale

Description

THIS MORI SEIKI MV65 VERTICAL WITH PALLET CHANGER HAS (3) PALLETS, FANUC MSG 501 CONTROL, RIGID TAPPING, 60 ATC AND A CAT 50 TAPER/ 6000 RPM SPINDLE.

X Travel60.2"1,529.1 mm
Y Travel26"660.4 mm
Z Travel25.6"650.24 mm
Spindle Speed4,000 RPM4000 rpm
Tool Capacity (ATC)6060
Table Size (W)66.9"1,699.3 mm
Table Size (L)26"660.4 mm
Spindle TaperCAT 50CAT 50
Spindle Nose To Table Top7.9 - 29.9”7.9 - 29.9”
ControlCNC (FANUC MSG 501)CNC (FANUC MSG 501)
Weight35,260 LBS.W/O APC35,260 LBS.W/O APC

SPECIFICATIONS:
WORKING SURFACE 66.9" X 26"
TABLE LOAD CAPACITY 4400 LBS.
X-AXIS TRAVEL 60.2"
Y-AXIS TRAVEL 26"
Z-AXIS TRAVEL 25.6"
SPINDLE NOSE TO TABLE TOP 8.7" - 33.5"
SPINDLE DRIVE MOTOR 25 HP AC
SPINDLE TAPER #50
SPINDLE SPEEDS 6000 RPM
CUTTING FEED RATES 0.01 - 393.7"
RAPID TRAVERSE RATES 944.9 IPM (X,Y,Z)
NUMBER OF TOOLS 60 ATC
MAXIMUM TOOL WEIGHT 44 LBS.
MAXIMUM TOOL LENGTH 17.7"
MACHINE WEIGHT 35.260 LBS.W/O APC

FANUC MSG 501 (18IM) CNC CONTROL
MMAPPS CONVERSATIONAL PROGRAMMING
SPINDLE CHILLER
2-PALLET FACTORY PALLET CHANGER
RIGID TAPPING
TOOL TIP AIR BLOW
METAL CONTACT SENSOR
OIL HOLE DRILL COOLANT SYSTEM
CHIP CONVEYOR
SCALE FEEDBACK X & Y
HAND HELD MPG
FULL GUARDING
ALL AVAILABLE MANUALS
