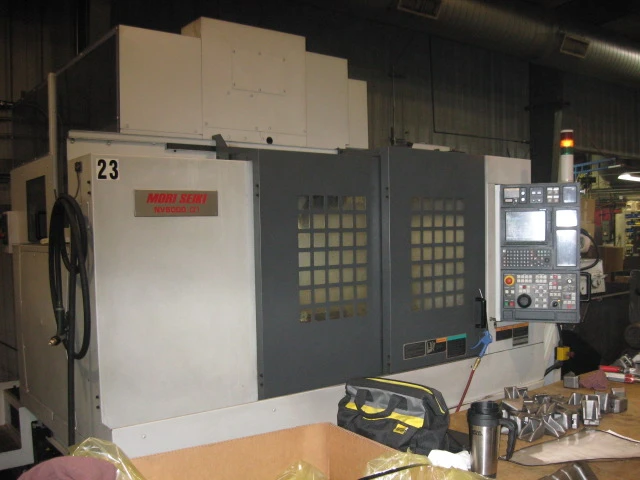

MORI SEIKI NV 5000/50 VERTICAL
Have one to sell?
ConditionUsed
1 available
THE MORI SEIKI NV 5000/50 IS A HIGH SPEED CAT 50/ 15000 RPMS SPINDLE VERTICAL WITH FANUC MAPPS CONTROL, THRU SPINDLE COOLANT AND 30 STATION ATC.
SPECIFICATIONS:
TABLE SIZE T-SLOTTED 52" X 23.6"
X - AXIS 40.2"
Y - AXIS 20.1"
Z - AXIS 20.1"
TABLE SURFACE TO SPINDLE 5.9"- 26"
TABLE LOAD CAPACITY 2,640 LBS.
RAPID TRAVERSE RATES 1653 X,Y,Z IPM
CUTTING FEED RATES 1653 IPM
SPINDLE NOSE #50 TAPER
SPINDLE SPEED 15,000 RPM
TOOL MAGAZINE 30 ATC
MAX TOOL LENGTH / WEIGHT 11.8" / 26.4 LBS.
MAX TOOL DIAMETER 3.1"/4.9"
TOOL CHANGE TIME 1.0 SEC.
CHIP TO CHIP TIME 2.6 SEC.
MAIN MOTOR 30 HP
MACHINE WEIGHT 15,070 LBS. W/O APC
MAPPS III MSX-501M CONTROL
CAT 50
15,000 RPM
30 HP SPINDLE.
THRU THE SPINDLE COOLANT.
30 STATION TOOL CHANGER
CHIP CONVEYOR
OPERATION TIME 4348.
CUT TIME 3091.
