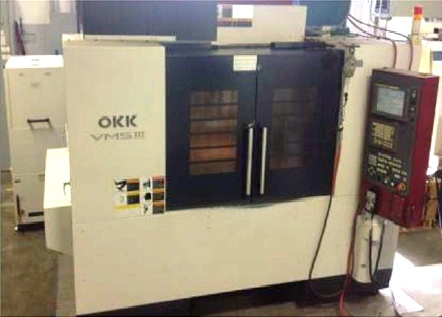

OKK VM5 III VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
THE OKK VM 5 VERTICAL MACHINING CENTER HAS 40" X 20" X 20" TRAVELS WITH A BT 50/ 10000 RPM SPINDLE, 1000 PSI COOLANT THRU, A FANUC CONTROL AND DUAL CHIP CONVEYORS.
SPECIFICATIONS:
TABLE WORKING SURFACE 59" X 26"
TABLE LOAD CAPACITY 1,764 LBS
LONGITUDINAL TRAVEL (X-AXIS) 40.15"
CROSS TRAVEL (Y-AXIS) 20.08"
VERTICAL TRAVEL (Z-AXIS) 20.08"
RAPID TRAVERSE (X & Y AXIS) 1417 IPM
RAPID TRAVERSE RATE(Z-AXIS) 1181IPM
CUTTING FEED RATES (ALL AXES) 1 - 787 IPM
SPINDLE HORSEPOWER 15
HP SPINDLE SPEED 50 - 10,000 RPM
SPINDLE TAPER BT 50
APPROXIMATE MACHINE DIMENSIONS 120" X 98"
APPROXIMATE MACHINE WEIGHT 17,000 LBS
TOOL MAGAZINE/CHANGER 30 ATC
FANUC 160ISMB CNC CONTROL
SPINDLE THROUGH COOLANT 1000PSI
RIGID TAPPING
STEEL TELESCOPING WAY COVERS
COMPLETE CHIP AND MACHINE ENCLOSURE
DUAL CHIP CONVEYORS
FLOOD COOLANT SYSTEM WITH HANDGUN AND HOSE
