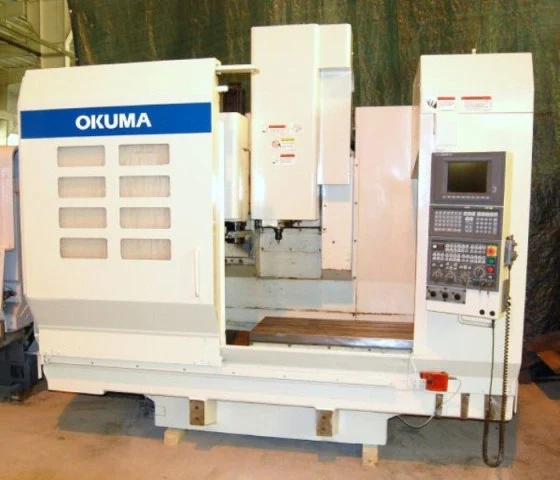

OKUMA MC-V4020 VERTICAL MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
OKUMA
Model:
MC-V4020
Year:
2001
Stock #:
3473
Status:
For Sale

Description

THIS OKUMA MC V4020 VERTICAL OFFERS TRAVELS OF 40" X 20" X 17", OKUMA OSP CONTROL, CAT 40/ 8000 RPM SPINDLE AND A 20 TOOL SWING ARM ATC.

X Travel40"1,016 mm
Y Travel20.08"510.03 mm
Z Travel17.72"450.09 mm
Spindle Speed8,000 RPM8000 rpm
Tool Capacity (ATC)2020
Table Size (W)48.37"1,228.6 mm
Table Size (L)20"508 mm
Main Spindle Motor20 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top6.30”-24.02”6.30”-24.02”
ControlCNC (OSP U10M)CNC (OSP U10M)
Dimensions112.5” X 127.95" X 107.08"112.5” X 127.95" X 107.08"
Weight15,400 LBS15,400 LBS

SPECIFICATIONS:
TABLE DIMENSIONS 48.37” X 20”
X AXIS TRAVEL 40”
Y AXIS TRAVEL 20.08”
Z AXIS TRAVEL 17.72”
SPINDLE END TO TABLE SURFACE 6.30”-24.02”
MAX LOAD CAP 1,500 LBS
SPINDLE TAPER CT #40
SPEED RANGE 40-8000 RPM
SPINDLE MOTOR 20 HP
ATC CAPACITY (SWING ARM) 20 TOOLS
MAX TOOL DIA 3.54” W-ADJACENT 4.92” W/O ADJACENT
MAX TOOL WEIGHT 17.6 LBS
TOOL CHANGE TIME 1.5 SEC T-T 3.8 SEC C-C
RAPID TRAVIS XY/Z 1,417 IPM / 1,191 IPM
MACHINE DIMENSIONS HXWXD 112.5” 127.95 107.08
MACHINE WEIGHT 15,400 LBS

OSP U10M CONTROL
SWING ARM ATC
HI G/HI-CUT TOLERANCE FUNCTION
MACMAN UTILIZATION TRACKING
CYCLE TIME REDUCTION
TOOL LIFE MANAGEMENT
SHOWER COOLANT
COM VAR 200 SETS
