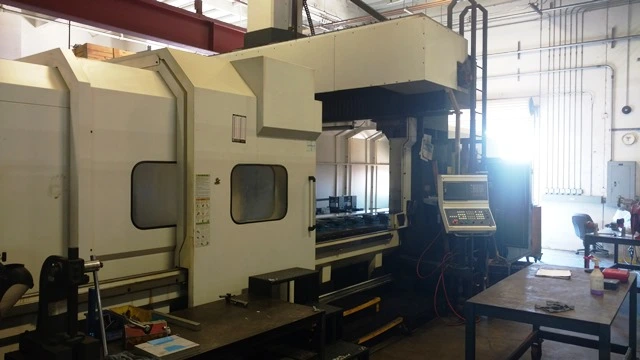

VIPER PRO 4210 VERTICAL MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
VIPER
Model:
PRO 4210
Year:
2011
Stock #:
5116
Status:
For Sale

Description

THE VIPER PRO-4210 160" X 82" X 42" BRIDGE TYPE VERTICAL MACHINING CENTER HAS AN EXTENDED Z AXIS, 300 PSI COOLANT THRU CHIPBLASTER, 40 POSITION ATC, SRC RENISHAW PROBE AND FANUC CONTROL.

X Travel159.4"4,048.8 mm
Y Travel82.7"2,100.6 mm
Z Travel42.1"1,069.3 mm
Spindle Speed6,000 RPM6000 rpm
Tool Capacity (ATC)4040
Table Size (W)163.4"4,150.4 mm
Table Size (L)80.3"2,039.6 mm
Main Spindle Motor35 hp
Spindle TaperCAT 50CAT 50
Spindle Nose To Table Top8.86″- 39.57″8.86″- 39.57″
Coolant ThruYesYes
Coolant Thru High PressureYesYes
Hi Pressure Coolant System300 psi
Tool Probe/Auto Tool Length MeasurementYesYes
ControlCNC (FANUC 18I-MB)CNC (FANUC 18I-MB)
Dimensions438"(LR) X 196"(FB) X 175"(H)438"(LR) X 196"(FB) X 175"(H)
Weight67,000 LBS67,000 LBS

SPECIFICATIONS:
TABLE WORKING SURFACE:                  163.4" X 80.3"
TABLE LOAD CAPACITY:                    22000
X-AXIS TRAVEL:                          159.4"
Y-AXIS TRAVEL:                          82.7"
Z-AXIS TRAVEL:                          42.1"
DISTANCE - SPINDLE CENTERLINE TO COLUMN 16.9"
DISTANCE BETWEEN COLUMNS:               90.5"
SPINDLE TAPER:                          50
SPINDLE SPEED:                          6000 RPM
MAIN MOTOR DRIVE:                       35HP (GEARED HEAD)
TOOL CHANGER POSITIONS:                 40
APPROXIMATE DIMENSIONS:                 438"(LR) X 196"(FB) X 175"(H)
APPROXIMATE WEIGHT:                     67,000 LBS.

FANUC 18I-MB
EXTENDED Z TRAVEL
COOLANT THRU SPINDLE CHIP BLASTER Q-75 (300 PSI)
40 POSITION AUTOMTIC TOOL CHANGER
SRC RENISHAW SPINDLE PROBE
8 DIGIT PROGRAMMING CAPACITY
