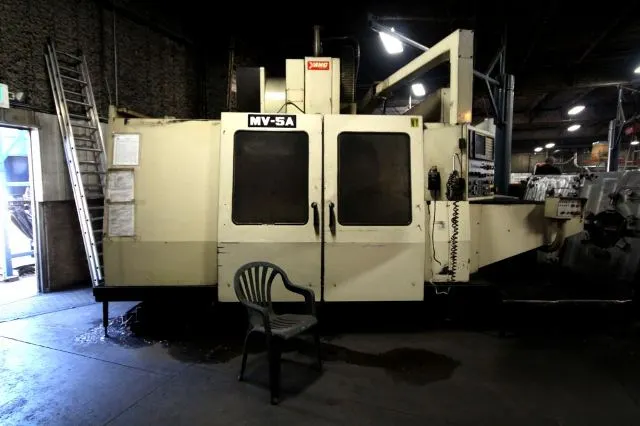

YANG MV-5A 2 PALLET VERTICAL MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
YANG
Model:
MV-5A 2 PALLET
Year:
1997
Stock #:
3558
Status:
For Sale
Serial #:
J00181

Description

THE YANG MV-5A VERTICAL MACHINING CENTER IS EQUIPPED WITH A FANUC CONTROL, 50 X 29.5 X 29.5 TRAVELS, A 40 TOOL SIDE MOUNT ATC AND A PALLET CHANGER WITH 2 PALLETS.

X Travel51"1,295.4 mm
Y Travel29.5"749.3 mm
Z Travel29.5"749.3 mm
Spindle Speed3,500 RPM3500 rpm
Tool Capacity (ATC)4040
Table Size (W)70.8"1,798.3 mm
Table Size (L)32.3"820.42 mm
Main Spindle Motor20 hp
Spindle TaperCAT 50CAT 50
Multiple PalletsYesYes
ControlCNC (FANUC SERIES O-M)CNC (FANUC SERIES O-M)

SPECIFICATIONS:
X-AXIS TRAVEL                51"
Y-AXISTRAVEL                 29.5"
Z-AXISTRAVEL                 29.5"
TABLESIZE                    70.8" X 32.3"
LOADCAPACITY                 4,400 LBS
RAPID FEEDRATE X,Y           393 IPM
RAPID FEEDRATE Z             393IPM
CUTTING FEEDRATE             .04-197 IPM
MAX.HORSEPOWER               20 HP
MAX.SPEED                    3,500 RPM
TOOLTYPE                     CAT50
MAX. TOOLWEIGHT              44 LBS
ATC CAPACITY                 40

FANUC SERIES O-M CNC CONTROL
SIDEMOUNT ATC
CHIP CONVEYOR
PALLET CHANGER WITH (2) PALLETS
