HAAS ST-10T CNC LATHE WITH HAAS BAR FEEDER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
HAAS
Model:
ST-10T
Year:
2019
Stock #:
5823
Status:
For Sale

Description

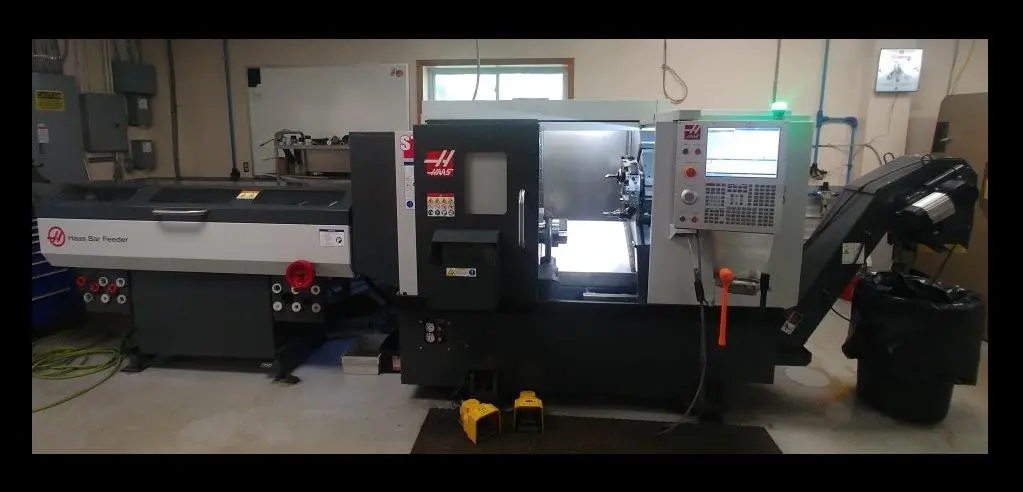

SUPER CLEAN 2019 HAAS ST-10T CNC LATHE WITH HAAS BAR FEEDER, TAILSTOCK, PARTS CATCHER, CHIP CONVEYOR. ONLY 347 CUTTING HOURS AS OF OCTOBER.

Max. Swing16.5"419.1 mm
Max Turning Diameter14"355.6 mm
Spindle Bore/Max Bar Capacity2.31"/ 1.8"2.31"/ 1.8"
Z Travel16"406.4 mm
X Travel7.9"200.66 mm
Machining Length16"406.4 mm
Distance Between Centers1616
Chuck Size6.5"165.1 mm
Chuck TypeHydraullicHydraullic
Spindle Motor15 hp
Spindle Speeds (RPM)60006000
Spindle Bore2.31 in
Max. Bar Capacity1.75"44.45 mm
Turret Tool Positions1212
TailstockYesYes
Chip ConveyorYesYes
Bar FeedYesYes
ControlCNC (HAAS)CNC (HAAS)

SPECIFICATIONS:
CHUCK (3-JAW) 6.5"
SPINDLE NOSE A2-5
SPINDLE SPEED 6,000 RPM
TURRET 12 STATION - BOLT ON STYLE

HAAS CNC CONTROL
12 STATION TURRET - BOLT ON STYLE
AUTO DOOR
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR- BELT STYLE
MANUAL TAILSTOCK WITH HYDRAULIC QUILL
RIGID TAPPING
VPS EDITING
MEDIA DISPLAY
1 GB MEMORY
COMPENSATION TABLES
EARLY POWER FAILURE DETECTION
ETHERNET INTERFACE
HAAS CONNECT
MISC. TOOL BLOCKS INCLUDED
CUSTOM LED LIGHT INSTALLED
SERVO BAR 300 BAR FEEDER WITH MISC. SPINDLE LINERS
VERY LOW CUTTING HOURS = 347.
