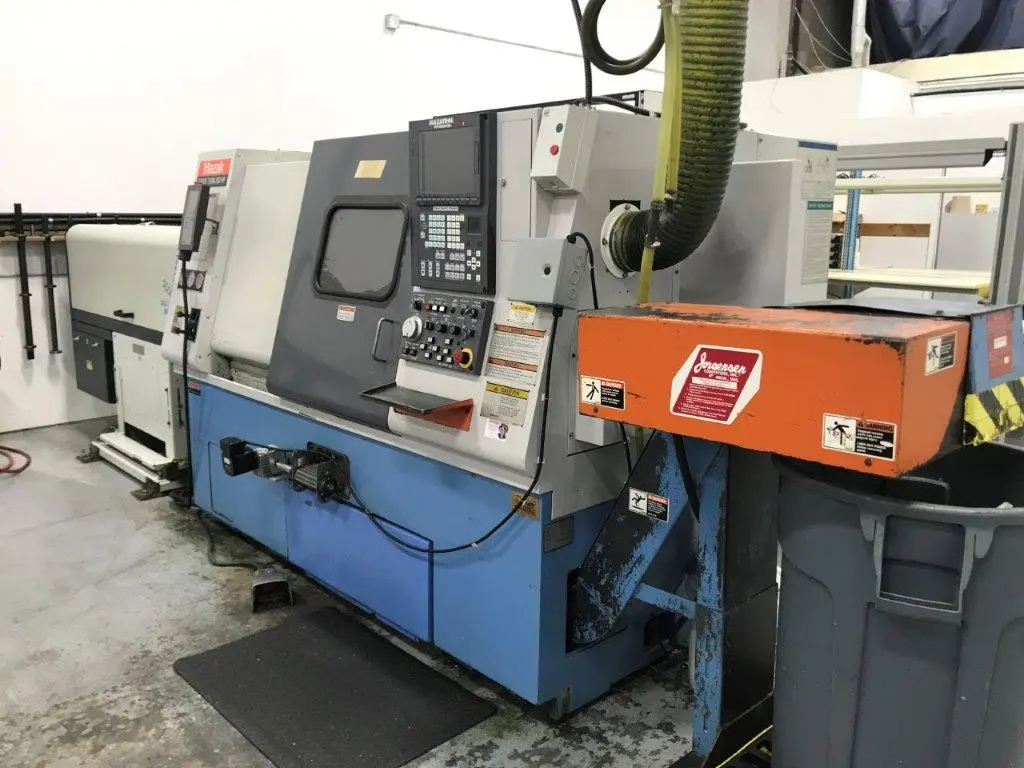

MAZAK QT 250HP

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
QT 250HP
Year:
1999
Stock #:
5733
Status:
For Sale

Description

THIS QT 250HP IS EQUIPPED WITH A 10" CHUCK FOR 2.75" BAR WORK, BARFEEDER, PARTS CATCHER AND MAZATROL FUSION 640 CONTROL.

Max. Swing23.6"599.44 mm
Max Turning Diameter15.7"398.78 mm
Spindle Bore/Max Bar Capacity3.1"/ 2.75"3.1"/ 2.75"
Z Travel20.1"510.54 mm
X Travel8.46"214.88 mm
Machining Length19.7"500.38 mm
Chuck Size10"254 mm
Chuck TypeHydraullicHydraullic
Spindle Motor20 hp
Spindle Speeds (RPM)40004000
Spindle Bore3.15 in
Max. Bar Capacity2.75"69.85 mm
Turret Tool Positions1212
TailstockYesYes
Chip ConveyorYesYes
Bar FeedYesYes
ControlCNC (MAZATROL FUSION 640T)CNC (MAZATROL FUSION 640T)

SPECIFICATIONS:
CHUCK SIZE 10 INCHES
SWING 23.6 INCHES
TURNING DIAMETER 15.7 INCHES
BAR CAPACITY 2.75 INCHES
SPINDLE SPEED (RPM) 4000
TAILSTOCK YES
MACHINE LENGTH 19.7
WEIGHT 9900 POUNDS
POWER 20 HORSEPOWER
TURRET CAPACITY 12

EQUIPPED WITH:
MAZATROL FUSION 640T
10" HYDRAULIC CHUCK
TOOL EYE
LNS QUICK LOAD SERVO BARFEEDER
AUTOMATIC PARTS CATCHER
CHIP CONVEYOR
