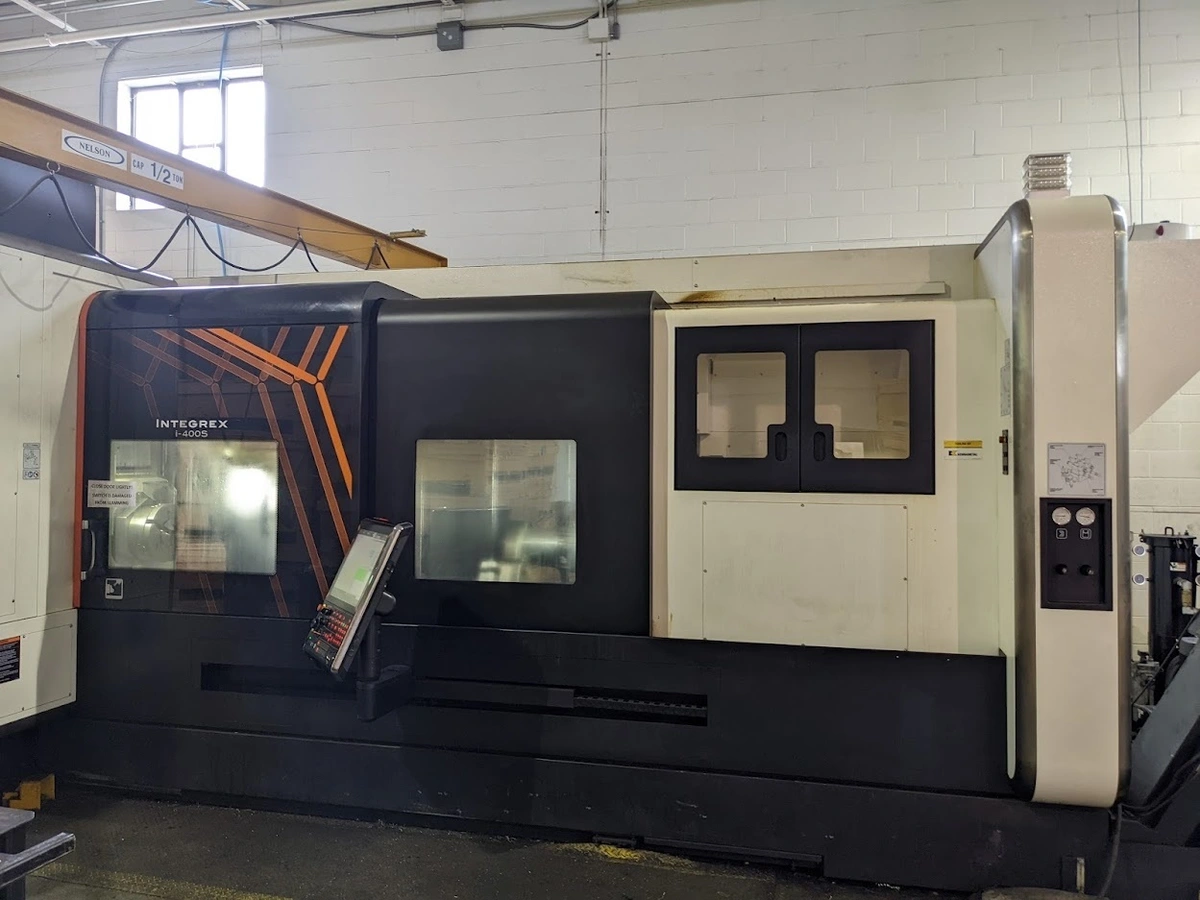

MAZAK INTEGREX i-400SLW/2500 MULTI AXIS LATHE
Have one to sell?
ConditionUsed
1 available
THIS INTEGREX i-400SLW/2500 HAS A MAZATROL SMOOTH X CONTROL, 100" CENTERS, 2 - 10" CHUCKS, 110 POSITION ATC, HOBBING, 5 AXIS MACHINING FOR SMOOTH X, 1000 PSI COOLANT THRU, RENISHAW RMP 600 PROBE AND HYDRAULIC STEADY REST. INCLUDES 60 TOOLHOLDERS, APPROX 1/2 MILLING.
SPECIFICATIONS:
SWING OVER BED 30"
TURNING DIAMETER 26" - 30" USING Y AXIS
TURNING LENGTH 98.5"
DISTANCE BETWEEN SPINDLES 100.75"
CHUCK SIZE 1, 2 10", 10"
SPINDLE NOSE 1, 2 A2-8, A2-8
BAR CAPACITY 1, 2 4", 3.46"
SPINDLE SPEEDS 1, 2 3300, 4000 RPM
SPINDLE HORSEPOWER 1, 2 40, 35 HP
B - AXIS HEAD INDEXING .0001 INDEXING
B - AXIS MILLING SPINDLE SPEED 12000 RPM
B - AXIS MILLING SPINDLE TAPER CAPTO C6
B - AXIS MILLING SPINDLE HP 25 HP
ATC FOR MILLING SPINDLE 110 ATC
TOOL DIAMETER 3.54" / 4.92"
TOOL LENGTH 15.75"
TOOL WEIGHT 22 LBS.
X - AXIS TRAVEL X1, X2, X3 24.8"
Z - AXIS TRAVEL Z1, Z2, Z3 100.75"
Y - AXIS TRAVEL Y1, Y2, Y3 9.06"
C - AXIS INDEXING 1, 2 .0001, .0001
W - AXIS TRAVEL SUB SPINDLE 85.3"
RAPID TRAVERSE RATES 1496 IPM
RAPID TRAVERSE RATES 1496 IPM
RAPID TRAVERSE RATES 1024 IPM
MACHINE WEIGHT 37,180 LBS.
MAZATROL SMOOTH X CNC COLOR CONTROL W/19" TOUCH SCREEN
OVERLOAD DETECTION SYSTEM
EIA/ISO FUNCTION SIMUTANEOUS 5 AXES
TOOL TIP CONTROL/ SIMULTANEOUS 5 AXIS
TOOL RADIUS COMPENSATION 5-AXIS
RE-THREADING FUNCTION
THREAD START POINT COMP.
CHIP CONVEYOR SIDE HINGE TYPE
HOBBING FUNCTION
MILLING SPINDLE SYNCHRONOUS TAPPING
AUTOMATIC TOOL EYE
MAIN AND SECOND SPINDLE CHUCK AIR BLAST
3 D COORDINATE CONVERSION, GOO SLOPE CONSTANT, CYLINDRICAL
POLAR COORDINATE, PITCH ERROR COMP, INCH/METRIC
EIA 1ST SPINDLE & MILL SPINDLE, IDEPENDENT ROTATION
SD MEMORY I/F, + USB, LAN PORT
Y AXIS CONTROL
1ST SPINDLE BORE 4.
C-AXIS .0001 DEGREE
12" THRU HOLE CHUCK B212
2ND SPINDLE C-AXIS .0001 DEGREE
CHUCK AIRBLAST
10" NON THRU HOLE CHUCK
5 AXIS MACHINING MACHINING PACKAGE FOR SMOOTH X
B - AXIS .0001 DEGREE CONTOURING EIA/ISO
AUTO CHUCK JAWS OPEN/CLOSE CONFIRMATION 1ST & 2ND SPINDLE
AUTO PWER ON/OFF + WARM UP
DOOR INTERLOCK & HYDRAULIC PRESSURE INTERLOCK BALLSCREW COOLERS X AXIS
POWER 480 V 3 PHASE MIST COLLECTOR (2) UNITS
110 AUTO TOOL CHANGE MAGAZINE
HIGH HP ROTARY 12,000 RPM SPINDLE
(3) TOOL LONG DRILL SYSTEM
MAZAK SUPERFLOW 1000 PSI HIGH PRESSURE COOLANT THRU SPINDLE SYSTEM
SMW K4-1Z PROGRAMMABLE HYDRAULIC STEADY REST 3.5"~12.99" CAPACITY
RENISHAW RMP 600 PROBE
ATLM SPECIAL TOOL SETTER RPI PROBE
WORK SETTING ERROR COMP G54.4
SPINDLE SHAPING FUNCTION G54.1
