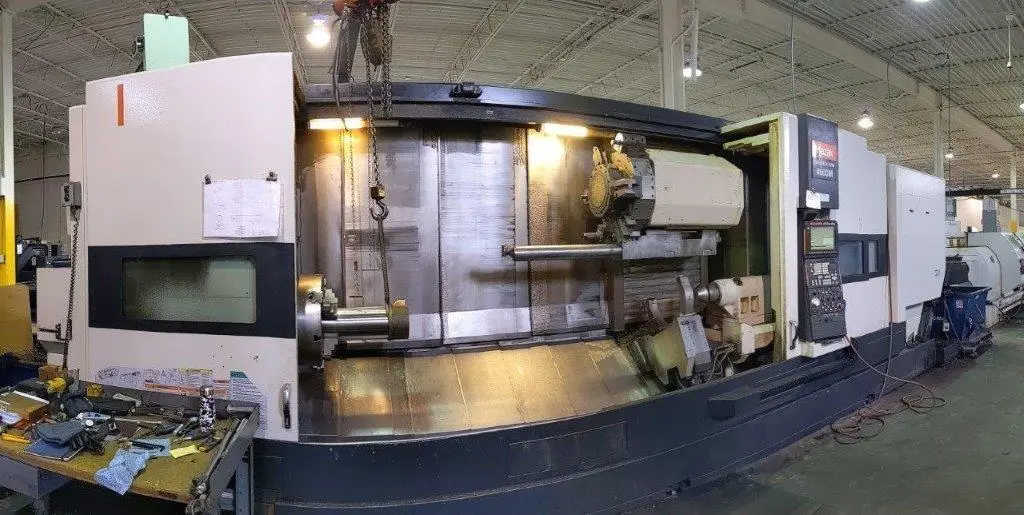

MAZAK CYBERTECH 4500M/ 3000 LATHE WITH MILLING
Have one to sell?
ConditionUsed
1 available
THIS CYBERTECH 4500M HAS A 120" BED, HYDRAULIC STEADY REST, LONG BORING BAR STOCKER, A 10.8" SPINDLE BORE AND MAZATROL FUSION 640MT PRO CONTROL.
SPECIFICATIONS:
CHUCK SIZE 24" MANUAL CHUCK
MAXIMUM SWING / OVER CARRIAGE 33.88" / 27.5
MAXIMUM CUTTING DIAMETER 31.88"
MAXIMUM CUTTING LENGTH 120"
X AXIS TRAVEL 21.375"
Z AXIS TRAVEL 123.25"
C AXIS INCREMENTAL MOVEMENT .001 DEG
SPINDLE NOSE / SPINDLE BORE A2-15" / 7.28"
SPINDLE SPEEDS - 2 RANGES 1,600 RPM (800RPM W/CURRENT CHUCK)
SPINDLE MOTOR HP 50 HP
ROTARY TOOL SPEED 3,000 RPM
ROTARY TOOL HP / SPINDLE TORQUE 15 HP / 103 FT/LBS
NUMBER OF TURRET POSITIONS-ALL LIVE 12 POS TRT
RAPID TRAVERSE RATES X / Z 945/ 1181 IPM
TAILSTOCK TAPER / MAX. BODY TRAVEL MT #5 / 100.4"
MACHINE DIMENSIONS 284"X98"X111"
MACHINE WEIGHT 35,715 LBS.
MAZATROL PC-FUSION-CNC 640MT PRO CONTROL
N-EIA/ISO OPTION PACKAGE
12.1" COLOR LCD
WINDOWS 2000 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
PCHCIA 1/F (2-SLOT, CARDBUS)
3.5" FDD UNIT
NETWORK INTERFACE (FOR LAN
& MODEM
RE-THREADING
ABSOLUTE POSITIONING SYS (N/A WITH S/F
THREAD START POINT
COMPENSATION
INTERFACE SET
(KEYBOARD,MOUSE,PARALLEL)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
ROTARY-TOOL SPINDLE SPEED 3000 RPM
MAIN SPINDLE MOTOR AC 37KW(50HP)
C-AXIS 0.001 DEGREE INCR.
SPINDLE BORE DIA.275MM(10.8'')/1000 RPM
MILLING-SPINDLE SYNCHRONOUS TAPPING
HIGH-POWER COOLANT (2.2KW)
213 PSI/ 2.5 GPM
TOOL EYE (AUTOMATIC)
12 POSITION DRUM TURRET
PROGRAMMABLE TAILSTOCK
PREP FOR REAR CHUCK & CYL & SPIN JOG BUTTON
LONG BORING BAR STOCKER (2 BAR CAPACITY,1000MM TL)
LONG BORING BAR HOLDER (100MM ID)
SMW K5.1 SINGLE AUTO STEADY REST PREP W/ BRACKET
LNS AUTOBLOK
K5.1 STEADY REST 3.94" - 16.1
HEAD SIDE HOUNT W/ AUTO LUBE SYSTEM, HYD HOSE
CHIP CONVEYOR SIDE DISPOSAL (HINGE) 3000U(120''U) W/LBB
MULTITAP TRANSFORMER
THIS CYBERTECH 4500M HAS A 120" BED, HYDRAULIC STEADY REST, LONG BORING BAR STOCKER, A 10.8" SPINDLE BORE AND MAZATROL FUSION 640MT PRO CONTROL.
Imperial
| Maximum Swing | 33.88" |
| Max Turning Diameter | 31.88" |
| Main Spindle Bore/Max Bar Capacity | 10.8 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 27.5" |
| Maximum Cutting Length | 31.88" |
| X-Axis Travel (X1, X2, X3) | 21.375 |
| Z-Axis Travel (Z1, Z2, Z3) | 123.25 |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 24" |
| Main Spindle Chuck Type | Manual |
| Main Spindle Bore Diameter | 7.2" |
| Main Spindle Speed | 1,600 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 50 |
| Rear Chuck Prep | Yes |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 3000 |
| Turret Rotary Tool Horse Power 1, 2 | 15 |
| Long Boring Bar Stocker | YES |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| Multi Tap Transformer | Yes |
| Control | CNC (MAZATROL PC-FUSION-CNC 640MT) |
| Dimensions | 284" X98" X111" |
SPECIFICATIONS:
CHUCK SIZE 24" MANUAL CHUCK
MAXIMUM SWING / OVER CARRIAGE 33.88" / 27.5
MAXIMUM CUTTING DIAMETER 31.88"
MAXIMUM CUTTING LENGTH 120"
X AXIS TRAVEL 21.375"
Z AXIS TRAVEL 123.25"
C AXIS INCREMENTAL MOVEMENT .001 DEG
SPINDLE NOSE / SPINDLE BORE A2-15" / 7.28"
SPINDLE SPEEDS - 2 RANGES 1,600 RPM (800RPM W/CURRENT CHUCK)
SPINDLE MOTOR HP 50 HP
ROTARY TOOL SPEED 3,000 RPM
ROTARY TOOL HP / SPINDLE TORQUE 15 HP / 103 FT/LBS
NUMBER OF TURRET POSITIONS-ALL LIVE 12 POS TRT
RAPID TRAVERSE RATES X / Z 945/ 1181 IPM
TAILSTOCK TAPER / MAX. BODY TRAVEL MT #5 / 100.4"
MACHINE DIMENSIONS 284"X98"X111"
MACHINE WEIGHT 35,715 LBS.
MAZATROL PC-FUSION-CNC 640MT PRO CONTROL
N-EIA/ISO OPTION PACKAGE
12.1" COLOR LCD
WINDOWS 2000 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
PCHCIA 1/F (2-SLOT, CARDBUS)
3.5" FDD UNIT
NETWORK INTERFACE (FOR LAN
& MODEM
RE-THREADING
ABSOLUTE POSITIONING SYS (N/A WITH S/F
THREAD START POINT
COMPENSATION
INTERFACE SET
(KEYBOARD,MOUSE,PARALLEL)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
ROTARY-TOOL SPINDLE SPEED 3000 RPM
MAIN SPINDLE MOTOR AC 37KW(50HP)
C-AXIS 0.001 DEGREE INCR.
SPINDLE BORE DIA.275MM(10.8'')/1000 RPM
MILLING-SPINDLE SYNCHRONOUS TAPPING
HIGH-POWER COOLANT (2.2KW)
213 PSI/ 2.5 GPM
TOOL EYE (AUTOMATIC)
12 POSITION DRUM TURRET
PROGRAMMABLE TAILSTOCK
PREP FOR REAR CHUCK & CYL & SPIN JOG BUTTON
LONG BORING BAR STOCKER (2 BAR CAPACITY,1000MM TL)
LONG BORING BAR HOLDER (100MM ID)
SMW K5.1 SINGLE AUTO STEADY REST PREP W/ BRACKET
LNS AUTOBLOK
K5.1 STEADY REST 3.94" - 16.1
HEAD SIDE HOUNT W/ AUTO LUBE SYSTEM, HYD HOSE
CHIP CONVEYOR SIDE DISPOSAL (HINGE) 3000U(120''U) W/LBB
MULTITAP TRANSFORMER
