DMG MORI CTX GAMMA 2000TC MULTI TASKING TURNING AND MILLING CENTER..CUSTOMER WILL LOAD BUYER RESONSIBLE FOR DUTIES
Have one to sell?
ConditionUsed
1 available

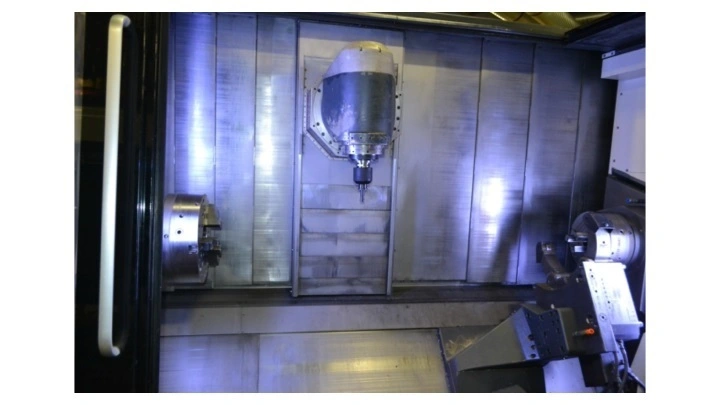

THIS 2013 DMG MORI CTX GAMMA 2000TC HAS A 43 HP HI-TORQUE B-AXIS SPINDLE, 5 AXIS SIMULTANEOUS MACHINING, HIGH PRESSURE DUAL 300 PSI PUMPS, 16" & 13" SMW CHUCKS, SMW STEADY REST SLU 5.1 AND 80" CENTERS. MACHINE COST NEW $1.2 MILL
SPECIFICATIONS:
SWING OVER BED 27.6"
TURNING DIAMETER 24.8", 27.6"
TURNING LENGTH 80.7
DISTANCE BETWEEN SPINDLES 89"
CHUCK SIZE 1, 2 16", 13"
SPINDLE BORE DIAMETER 1, 2 4.1", 2.6"
BAR CAPACITY 1, 2 3.5", 2.2"
SPINDLE SPEEDS 1, 2 2500, 4000 RPM
SPINDLE HORSEPOWER 1, 2 70, 61 HP
B - AXIS HEAD INDEXING + - 120 DEGREES
B - AXIS MILLING SPINDLE SPEED 8000 RPM
B - AXIS MILLING SPINDLE TAPER CAPTO C6
B - AXIS MILLING SPINDLE HP 43 HP
ATC FOR MILLING SPINDLE 36 ATC
X - AXIS TRAVEL X1, X2, X3 25.6"
Z - AXIS TRAVEL Z1, Z2, Z3 80.7"
Y - AXIS TRAVEL Y1, Y2, Y3 + - 7.9"
C - AXIS INDEXING 1, 2 .001, .001
W - AXIS TRAVEL SUB SPINDLE 75.2"
RAPID TRAVERSE RATES X1 1575 IPM
RAPID TRAVERSE RATES Z1 1575 IPM
RAPID TRAVERSE RATES Y1 1181 IPM
MACHINE WEIGHT 52,910 LBS.
SIEMENS 840D CNC ERGOLINE CNC CONTROL
1000 PSI PUMP FOR FLUSHING OF CHUCKS, STEADY REST AND WAY COVERS
13" SMW AUTOBLOK KNCS 300 - 128, 4.09 DRAW TUBE, 61 HP SUB SPINDLE
16" SMW AUTOBLOK KNCS 400 - 128, 4.09 DRAW TUBE, 70 HP MAIN SPINDLE
43 HP HIGH TORQUE B - AXIS MILLING SPINDLE
5 AXIS SIMULTANEOUS MACHINING
70 PCS CAPTO C6 TGOOL HOLDERS
AUTO CABIN DOORS
ETHERNET, USB
EXCENTRIC TURNING AND MILLING OPERATIONS
FULL C-AXIS ON BOTH SPINDLES
HIGH PRESSURE DUAL 300 PSI PUMPS
PROGRAMMABLE FOLLOW STEADY REST SMW AUTOBLOK SLU 5.1 (3.35" - 13.78")
SIEMENS 840D CNC CONTROL
5 AXIS SIMULATANEOUS MACHINING
SPINDLE CHILLER FOR ALL THREE SPINDLES
SUB SPINDLE OPTION FOR TAILSTOCK FORCE
TAILSTOCK FUNCTION WITH SUB SPINDLE INTERFACE
TOOTH SYSTEM MILLING VIS GEAR HOBBING
