MAZAK QTN 200MS II

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 200MS II
Year:
2011
Stock #:
5884
Status:
For Sale

Description

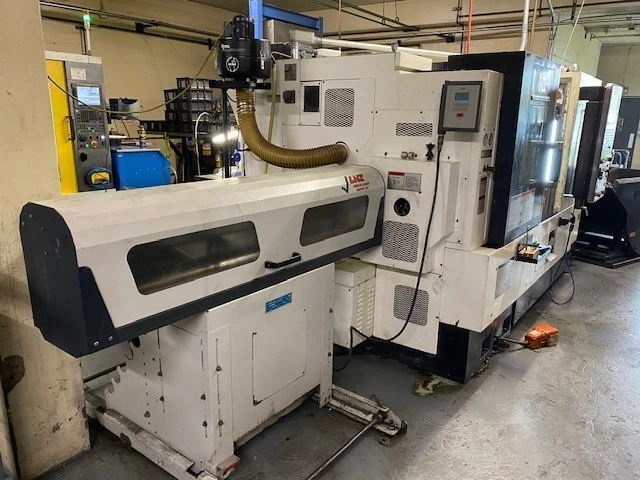

THIS QTN 200MS COMES WITH A 8" & 6" CHUCKS, MATRIX CONTROL, SUB-SPINDLE, BARFEEDER, 350 PSI COOLANT THRU, 3 VERTICAL AND 2 HORIZONTAL LIVE TOOLS.

Maximum Swing26.5"673.1 mm
Max Turning Diameter13.78"350.01 mm
Main Spindle Bore/Max Bar Capacity2.99/ 2.02.99/ 2.0
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length21.27"540.26 mm
Distance Between Spindles22.7"576.58 mm
X-Axis Travel (X1, X2, X3)99
Z-Axis Travel (Z1, Z2, Z3)21.2821.28
C-Axis Indexing (1, 2).001, .001 DEGREES.001, .001 DEGREES
W-Axis Travel Sub Spindle23 in
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.99"75.946 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size2.02.0
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)1515
Main & Sub Spindle SynchronizationNoNo
Number of Turrets11
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 27.57.5
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
Milling Spindle Synchronous TappingYesYes
Tool Eye Automatic Front SpindleYesYes
Tool Eye Automatic Second SpindleYesYes
High Pressure Coolant System (PSI)300300
Number of Available Live Tool Holders55
ControlCNC (MAZATROL MATRIX)CNC (MAZATROL MATRIX)
Weight11,243 LBS11,243 LBS

SPECIFICATIONS:
SWING OVER BED 26.5"
TURNING DIAMETER, SHAFT DIAMETER 13.78"
MACHINING LENGTH 21.27"
DISTANCE BETWEEN SPINDLES 22.7"
CHUCK SIZE 1, 2 8", 6"
SPINDLE NOSE 1, 2 A2-6, A2-5
SPINDLE BORE DIAMETER 1, 2 2.99"
SPINDLE BAR CAPACITY 1, 2 2"
SPINDLE SPEEDS 1, 2 5000, 6000 RPM
SPINDLE HORSEPOWER 1, 2 35, 15 HP
X - AXIS TRAVEL 1, 2 9"
Z - AXIS TRAVEL 1, 2 21.28"
C - AXIS TRAVEL 1, 2 .001, .001 DEGREES
W - AXIS TRAVEL SUB SPINDLE 23"
RAPID TRAVERSE RATES X1, X2 1181 IPM
RAPID TRAVERSE RATES Z1, Z2 1229 IPM
RAPID TRAVERSE RATE W AXIS 826 IPM
TURRET CONFIGURATION 1, 2 12 STATIONS
TURRET ROTARY TOOL SPINDLE SPEED 1, 2 4500 RPM
TURRET ROTARY TOOL HORSE POWER 1, 2 7.5 HP
MACHINE WEIGHT 11,243 LBS.

MAZATROL MATRIX CNC CONTROL
2ND AUX. FUNCTION
600 VARIABLE SETS
BAR FEED INTERFACE
COMPARISON STOP CYLINDER
EIA
EIA HELICAL TAP AND PATTERN CYCLES
G54.1
HIGH PRESSURE COOLANT
INVERSE TIME
LNS QUICK LOAD 65 SHORT MAGAZINE LOADER
PARTS CATCHER
PITCH ERROR COMP
POLAR COORDINATE INPUT
SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
SUB-C-AXIS CONTROL
SYNC. MILL TAPPING
THREAD
TILTED WORKPLANE T
TOOL PRESETTER
CHIP CONVEYOR

AS PER SELLER:
3 VERTICAL LIVE TOOLS
2 HORIZONTAL LIVE TOOLS
MAIN SPINDLE-3 JAW CHUCK WITH HARD JAWS AND 16C DEAD STOP COLLET NOSE
SUB SPINDLE-3 JAW CHUCK WITH HARD JAWS AND 16C DEAD STOP COLLET NOSE
A SET OF BASIC TRUSTY COOK BRAND SPINDLE LINERS
ALL TURNING AND PARTING TOOL HOLDERS FOR MACHINE
350 PSI COOLANT PUMP WITH COOLANT FILTER
COOLANT SKIMMER/CIRCULATOR TO REMOVE OIL
MIST COLLECTOR
