** PENDING RELEASE DATE **

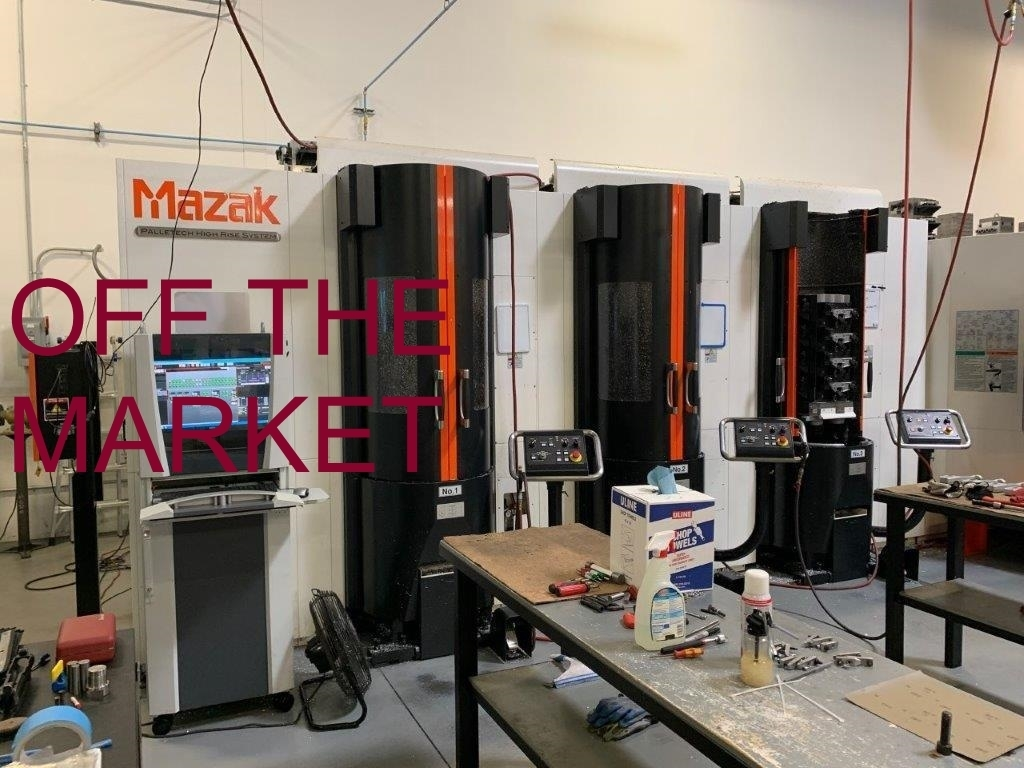

THIS HCN 4000 PALLETECH SYSTEM INCLUDES 4 MACHINES (2 - 2015 & 2 - 2017) AND A 68 PALLET HIGH RISE SET UP WITH SMOOTH G & MATRIX CONTROLS, BIG PLUS CAT 40/ 18000 RPM SPINDLE, 160 ATC (THE 2017'S) AND CAT 40/ 12000 RPM (THE 2015'S) AND MAZAK SUPERFLOW HI PRESSURE COOLANT.
| PALLET SIZE | 15.75" X 15.75" |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring |
| TOOL CAPACITY (ATC) | 160 |
| SPINDLE TAPER | CAT 40 |
| MAXIMUM WORKPIECE DIAMETER | 24.8" |
| NUMBER OF PALLETS | 68 |
| PALLET SIZE (W) | 15.75" |
| PALLET SIZE (L) | 15.75" |
| PALLET LOAD CAPACITY | 880 lb |
| X-AXIS TRAVEL | 22.05" |
| Y-AXIS TRAVEL | 25.2" |
| Z-AXIS TRAVEL | 25.2" |
| SPINDLE SPEED | 18000 rpm |
| SPINDLE DRIVE MOTOR | 25 hp |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 1000 psi |
| PALLETECH SYSTEM NUMBER OF PALLETS | 68 |
| CHIP CONVEYOR | Yes |
| Control | CNC (MAZATROL SMOOTH G/ MATRIZ) |
SPECIFICATIONS:
PALLET SIZE 15.75" X 15.75"
NUMBER OF PALLETS 68
PALLET WEIGHT CAPACITY 880 LBS.
PALLET SURFACE TO SPINDLE CENTER 3.15" ~ 27.95"
PALLET CENTER TO SPINDLE GAGE LINE 2.76" ~ 27.96"
WORKPIECE DIMENSIONS 24.8" X 35.43"
X - AXIS TRAVEL 22.05"
Y - AXIS TRAVEL 25.20"
Z - AXIS TRAVEL 25.2"
B - AXIS TRAVEL .001 N/C ROTARY
RAPID TRAVERSE RATES X, Y, Z 2362, 2362, 2362 IPM
RAPID TRAVERSE RATE B AXIS 125 RPM
CUTTING FEED RATE .04 ~ 2362 IPM
SPINDLE SPEED 18,000 RPM
SPINDLE TAPER 40 BIG PLUS
MAIN MOTOR 25 HP
AUTOMATIC TOOL CHANGER 160 ATC/ 40 ON 2015'S
TOOL DIAMETER 3.74", 5.9"
TOOL LENGTH 16.53"
TOOL WEIGHT 26 LBS.
TOOL CHANGE TIME 1.2 SEC.
MACHINE WEIGHT 22,880 LBS.
MAZATROL SMOOTH G CNC COLOR CONTROL - 2017 MACHINES (160 ATC)
MAZATROL MATRIX 2 - 2015 MACHINES (40 ATC)
EIA/ISO
GEOMETRIC
SCALING
EXT-DATA I/O
INVERSE TIME
POLAR COORDINATE INPUT
COMPARISON STOP
G54.1
SYNC TAPPING
INCH/METRIC
G00 SLOPE CONSTANT
600 VARIABLE SETS
PITCH ERROR COMP
CHIP CONVEYOR
DYNAMIC COMP.
EIA HELICAL TAP CYCLE, EIA PATTERN CYCLE
TRANFORMER
RENISHAW OMP60 PROBE
BALL SCREW CORE COOLING
NIAGARA FLOOD COOLANT SYSTEM
Y - AXIS TRAVEL 25.20"
AUTO TOOL LENGTH MEASUREMENT & BREAKAGE DETECTION
SPINDLE ORIENT MULTIPOINT
MAZAK 2-D SOFTWARE SHAPE COMPENSATION
AUTO PECK CYLCLE WITH OVERLOAD DETECT
MAZAK SUPERFLOW HI PRESSURE COOLANT
SMOOTH SET AND INSPECT
BIG PLUS SPINDLE
HYDRAULIC FIXTURE PREP PLATE
(2) 2017 & (2) 2015 HCN 4000 II IN CELL
