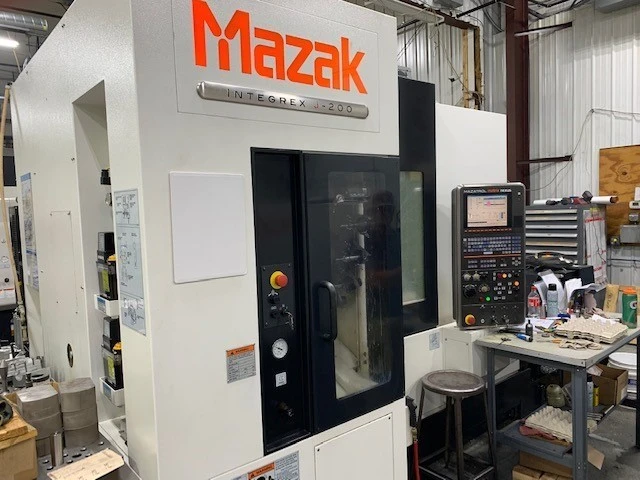

INTEGREX j-200
Have one to sell?
ConditionUsed
1 available
THIS INTEGREX j-200 HAS A MATRIX CONTROL, 8" CHUCK, TAILSTOCK, 12000 RPM ROTARY SPINDLE SPEED, 213 PSI COOLANT THRU AND AUTO PARTS CATCHER.
SPECIFICATIONS
MAX. SWING 20.87"
MAX. CUTTING DIA.(CHUCKING) 19.69"
MAXIMUM CUTTING LENGTH 19.69"
SPINDLE BORE 2.44"
SPINDLE NOSE A2-5"
MAXIMUM BAR CAPACITY 2"
SPINDLE SPEEDS 5000 RPM
SPINDLE INDEX 0.001 DEGREE 360,000 POSITIONS
SPINDLE HORSEPOWER 15 HP AC
TAILSTOCK N/C CONTROLED
TYPE OF TURRET 1 POSITION W/ATC
TOOL SHANK CAPTO C-6
MAGAZINE CAPACITY 20 ATC
MAX. BORING BAR DIAMETER 1.25"
MAX. TOOL DIAM W/ALL POCKETS FULL 2.76"
MAX. TOOL DIAM W/ ADJ PKTS EMPTY 3.54"
MAX. TOOL LENGTH 7.87"
MAX. TOOL WEIGHT 8.8 LBS.
ROTARY TOOL SPINDLE SPEEDS 12,000 RPM
ROTARY TOOL SPINDLE HORSEPOWER 10 HP AC
B-AXIS 225 DEGREES
(1 DEG. INCREMENTS)
Y-AXIS +/- 3.94"
TAILSTOCK TRAVEL 14.14"
TAILSTOCK CENTER MT #5
RAPID TRAVERSE RATE (Y/X/Z ) 1024/1181/1299 IPM
C-AXIS 400 IPM
B-AXIS 0.5 SEC./90 DEGREE
MACHINE WEIGHT 13,530 LBS
MATRIX CNC CONTROL
12.1" COLOR LCD
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
EIA/ISO CODE INPUT FUNCTION (STANDARD)
ADDITIONAL EIA/ISO FUNCTIONS (REQUIRES EIA/ISO)
3-D COORDINATE CONVERSION
B)G00 SLOPE CONSTANT
B)SHAPE COMPENSATION FOR ROTARY AXES (G61.1)
B)CYLINDRICAL (G07) & POLAR COORDINATE (G12)
B)MILLING-SPINDLE SYNCHRONOUS TAPPING
EIA/ISO LATHE & MILL SPINDLE INDEPENDENT ROTATION
INCH/METRIC CONVERSION
LAN PORT
USB I/F
ABOSLUTE POSITIONING SYSTEM (LINEAR AXES)
X,Y,Z PITCH ERROR COMPENSATION INPUT
Y-AXIS CONTROL
COOLANT THROUGH MILLING HEAD
15KG/213 PSI THRU COOLANT/FLOOD SIMUL-FLOWABLE
MAIN SPINDLE MOTOR AC 15KW (20HP)
SPINDLE SPEED 5000 RPM
20 CAPTO-TOOL MAGAZINE
ROTARY-TOOL SPINDLE SPEED 12000 RPM
B-AXIS INDEX 1 DEGREE (COUPLING CLAMP)
PROGRAMMABLE TAILSTOCK (DEAD CENTER MT5)
MAZAK STANDARD COLOR (FROST WHITE / SATIN BLACK)
TOOL EYE (AUTOMATIC)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
POWER TRANSFORMER FOR NORTH AMERICAN MKT
RELOCATION DEVICE
8” THRU-HOLE CYCL S-1875
AUTO POWER OFF (BREAKER TRIP)
AUTO PARTS CATCHER (DIA.2.5” X 4.72”L X 5.5LB)
CHIP CONVEYOR SIDE DISPOSAL (HINGE TYPE)
THIS INTEGREX j-200 HAS A MATRIX CONTROL, 8" CHUCK, TAILSTOCK, 12000 RPM ROTARY SPINDLE SPEED, 213 PSI COOLANT THRU AND AUTO PARTS CATCHER.
Imperial
| Maximum Swing | 20.87" |
| Max Turning Diameter | 19.69" |
| Main Spindle Bore/Max Bar Capacity | 2.44/ 2.0 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Cutting Length | 19.69" |
| X-Axis Travel (X1, X2, X3) | 17.72 |
| Z-Axis Travel (Z1, Z2, Z3) | 21.65 |
| Y-Axis Travel (Y1, Y2, Y3) | 7.87 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.44" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 15 |
| ATC Magazine Capacity | 20 |
| B Axis Rotary Tool Spindle Speed | 12000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 10 hp |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Multi Tap Transformer | Yes |
| Control | CNC (MAZATROL MATRIX) |
| Weight | 13,530 LBS |
SPECIFICATIONS
MAX. SWING 20.87"
MAX. CUTTING DIA.(CHUCKING) 19.69"
MAXIMUM CUTTING LENGTH 19.69"
SPINDLE BORE 2.44"
SPINDLE NOSE A2-5"
MAXIMUM BAR CAPACITY 2"
SPINDLE SPEEDS 5000 RPM
SPINDLE INDEX 0.001 DEGREE 360,000 POSITIONS
SPINDLE HORSEPOWER 15 HP AC
TAILSTOCK N/C CONTROLED
TYPE OF TURRET 1 POSITION W/ATC
TOOL SHANK CAPTO C-6
MAGAZINE CAPACITY 20 ATC
MAX. BORING BAR DIAMETER 1.25"
MAX. TOOL DIAM W/ALL POCKETS FULL 2.76"
MAX. TOOL DIAM W/ ADJ PKTS EMPTY 3.54"
MAX. TOOL LENGTH 7.87"
MAX. TOOL WEIGHT 8.8 LBS.
ROTARY TOOL SPINDLE SPEEDS 12,000 RPM
ROTARY TOOL SPINDLE HORSEPOWER 10 HP AC
B-AXIS 225 DEGREES
(1 DEG. INCREMENTS)
Y-AXIS +/- 3.94"
TAILSTOCK TRAVEL 14.14"
TAILSTOCK CENTER MT #5
RAPID TRAVERSE RATE (Y/X/Z ) 1024/1181/1299 IPM
C-AXIS 400 IPM
B-AXIS 0.5 SEC./90 DEGREE
MACHINE WEIGHT 13,530 LBS
MATRIX CNC CONTROL
12.1" COLOR LCD
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
EIA/ISO CODE INPUT FUNCTION (STANDARD)
ADDITIONAL EIA/ISO FUNCTIONS (REQUIRES EIA/ISO)
3-D COORDINATE CONVERSION
B)G00 SLOPE CONSTANT
B)SHAPE COMPENSATION FOR ROTARY AXES (G61.1)
B)CYLINDRICAL (G07) & POLAR COORDINATE (G12)
B)MILLING-SPINDLE SYNCHRONOUS TAPPING
EIA/ISO LATHE & MILL SPINDLE INDEPENDENT ROTATION
INCH/METRIC CONVERSION
LAN PORT
USB I/F
ABOSLUTE POSITIONING SYSTEM (LINEAR AXES)
X,Y,Z PITCH ERROR COMPENSATION INPUT
Y-AXIS CONTROL
COOLANT THROUGH MILLING HEAD
15KG/213 PSI THRU COOLANT/FLOOD SIMUL-FLOWABLE
MAIN SPINDLE MOTOR AC 15KW (20HP)
SPINDLE SPEED 5000 RPM
20 CAPTO-TOOL MAGAZINE
ROTARY-TOOL SPINDLE SPEED 12000 RPM
B-AXIS INDEX 1 DEGREE (COUPLING CLAMP)
PROGRAMMABLE TAILSTOCK (DEAD CENTER MT5)
MAZAK STANDARD COLOR (FROST WHITE / SATIN BLACK)
TOOL EYE (AUTOMATIC)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
POWER TRANSFORMER FOR NORTH AMERICAN MKT
RELOCATION DEVICE
8” THRU-HOLE CYCL S-1875
AUTO POWER OFF (BREAKER TRIP)
AUTO PARTS CATCHER (DIA.2.5” X 4.72”L X 5.5LB)
CHIP CONVEYOR SIDE DISPOSAL (HINGE TYPE)
