MAZAK HCR 5000/ 5 AXIS HORIZONTAL
MACHINING CENTERS, HORIZONTAL.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

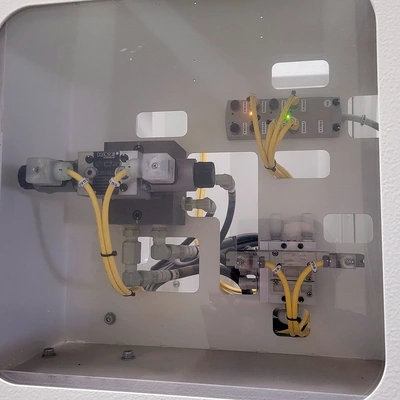

This 2019 (installed 2021) HCR 5000/ 5 axis - 2 pallet horizontal has only 15 cut hours and has never run production. It has Mazak's Smooth X Full 5 axis simultaneous control, BIG Plus CAT 40 spindle, 120 ATC, 18000 rpm spindle, 1000 psi Super Flow coolant thru and Renishaw RMP 600 probe.
| X-AXIS TRAVEL | 28.74" |
| Y-AXIS TRAVEL | 28.74" |
| Z-AXIS TRAVEL | 28.74" |
| SPINDLE TAPER | CAT 40 |
| SPINDLE DRIVE MOTOR | 47 hp |
| SPINDLE SPEED | 18000 rpm |
| MAXIMUM WORKPIECE DIAMETER | 27.66" |
| TOOL CAPACITY (ATC) | 120 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 19.69" x 19.69" |
| PALLET SIZE (W) | 19.69" |
| PALLET SIZE (L) | 19.69" |
| PALLET LOAD CAPACITY | 1102.31 lb |
| 5 AXIS PROGRAMMABLE AXIS'S | 5 |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 10000 psi |
| CHIP CONVEYOR | Yes |
| Control | CNC (SMOOTH X FULL 5 AXIS SIMULTANEOUS) |
| Dimensions | 230.85" x 123.51" x 111.85" |
| Weight | 31,238 LBS |
PALLETS (2) 19.69" x 19.69"
X AXIS TRAVELS 28.74
Y AXIS TRAVELS 28.74"
Z AXIS TRAVELS 28.74"
MAX WORKPIECE DIAMETER 27.66"
MAX WORKPIECE HEIGHT 26.34"
MAX WORKPIECE WEIGHT 1102.31 LBS
SPINDLE TAPER BIG PLUS 40
MAXIMUM SPEED 18000 RPM
SPINDLE 47 HP
RAPID FEED RATES - X/ Y/ Z 2362.2 IPM
A 30
C 50

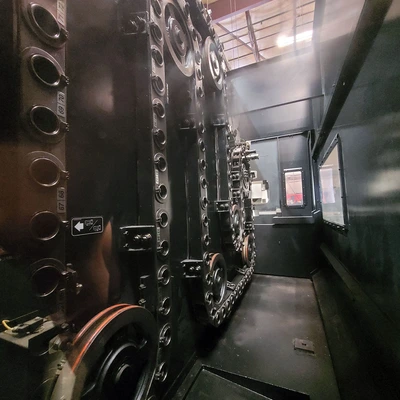

TOOL MAGAZINE 120 ATC
ROTARY TABLE TILT - A AXIS 225 DEGREES
ROTARY TABLE TILT - C AXIS 360,000 DEGREES
DIMENSIONS 230.85" x 123.51" x 111.85"
APPROX WEIGHT 31,238 LBS
MAZAK SMOOTH X FULL 5 AXIS SIMULTANEOUS CONTROL
BIG PLUS CAT40/ 18,000 RPM/ 47 HP SPINDLE
120 TOOL MAGAZINE
32MB MAXIMUM PROGRAM SIZE
213 PSI THRU SPINDLE COOLANT

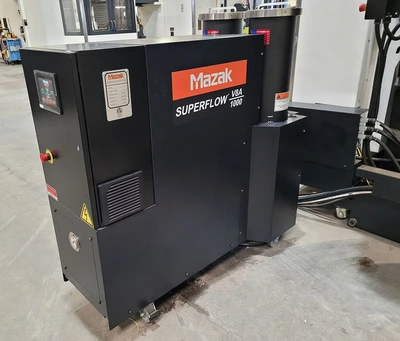

ADDITIONAL COOLANT PUMP SUPER FLOW V8A
VARIABLE PRESSURE 1000 PSI MAX COOLANT PRESSURE
MANUAL PULSE GENERATOR WIRED
QUICK COOLANT STOP
SIGNAL TOWER THREE LIGHTS
WORK MEASURING SYSTEM WITH RENISHAW RMP600 PROBE
AUTO PECKING WITH LOAD DETECTION DRILLING FUNCTION
SMOOTH ENGRAVING FUNCTION
MIST COLLECTOR
WORK SET ERROR COMPENSATION G54.4
B/CYLINDRICAL INTERPOLATION
CONCEPT DUAL BELT CHIP CONVEYOR
**Has never run production only 15 hours Total Cut time**
CONTROL OPTIONS:
EIA
HIGH SMOOTHING CONTROL
SPIRAL
EIA 3D COMP
ROTATION
GEOMETRIC
SCALING
EXT-DATA I/O
HIGH SPEED
SHAPE COMP
THREAD
INVERSE TIME
DYNAMIC COMP
AUTO TLM
POLAR COORDINATES INPUT
COMPARISON STOP
SPLINE
G54.1
SYNC. MILL TAPPING
INCH/ MM CONVERT
ROT AXIS SHAPE COMP
G00 SLOPE CONST
VARIABLE 600 SETS
CYLINDER & POLAR CO-OR INT
SIMUTANEOUS 5 AXIS
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
2ND AUX FUNCTIONS
TILTED WORKING PLANE
5 AXIS TOOL COMP
AUTO PECKING
TOOL CENTER POINT CONTROL
PROGRAM MEMORY EXPANSION
WORK POS. ERR. COMP
5 AXIS SPLINE
SEAMLESS CORNER CONTROL
VARIABLE ACC CONTROL
SUPER HIGH SPEED
RAPID OVERLAP
PROGRAM MEMORY EXPANSION 2
AUTOMATIC OPERATION ISS
ENGRAVING
