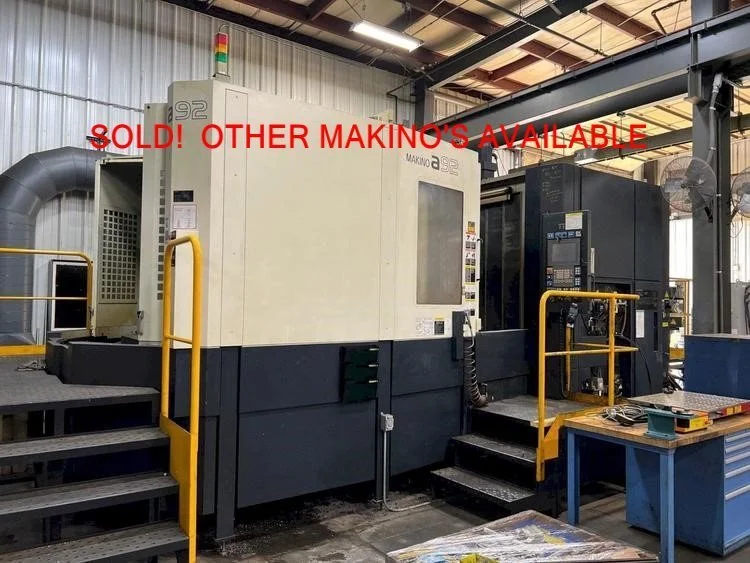

Makino A92 CNC Horizontal Machining Center
New: 2006 (was a Makino Demo through 2012)
S/N 001
| PALLET SIZE | 31.5" X 39.4" |
| 4 AXIS PALLET TABLE INDEXING | 1 Degree Index |
| TOOL CAPACITY (ATC) | 92 |
| SPINDLE TAPER | CAT 50 |
| MAXIMUM WORKPIECE DIAMETER | 5,959" |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE (W) | 31.5" |
| PALLET SIZE (L) | 39.4" |
| PALLET LOAD CAPACITY | 4400 lb |
| X-AXIS TRAVEL | 59.8" |
| Y-AXIS TRAVEL | 49.2" |
| Z-AXIS TRAVEL | 53.1" |
| SPINDLE SPEED | 8000 rpm |
| SPINDLE DRIVE MOTOR | 47 hp |
| HI-PRESSURE COOLANT SYSTEM | 300 psi |
| CHIP CONVEYOR | Yes |
| MAX WORKPIECE SIZE | 59" X 59" |
| Control | CNC (PROFESSIONAL 5 CONTROL) |
| Dimensions | 136 X 197 X 133 |
EQUIPPED WITH:
PROFESSIONAL 5 CONTROL
PENDANT HAND CONTROLLER
TOOL BREAKAGE SENSOR
300 PSI THRU-SPINDLE COOLANT
CHIP CONVEYOR
COOLANT THRU SPINDLE
CHIP CONVEYOR
ALL SPECIFICATIONS AND OPTIONS ARE SUBJECT TO VERIFICATION BY THE BUYER AND OR ITS REPRESENTATIVE
