** SOLD** MAZAK INTEGREX i-200SR/ 1500 **SOLD**

** SOLD** MAZAK INTEGREX i-200SR/ 1500 **SOLD**

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
INTEGREX I-200SR
Condition:
Excellent
Year:
2014
Stock #:
210066
Status:
For Sale

Description

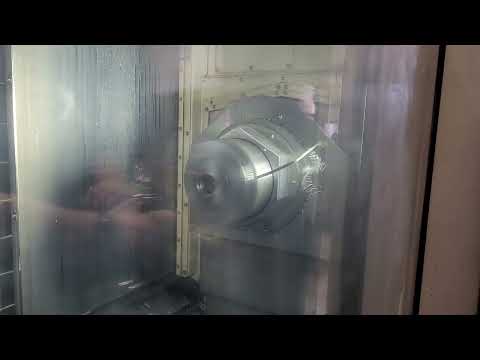

THIS 2014 INTEGREX i-200SR IS A 40" MACHINE WITH A MATRIX 2 CONTROL, 72 STATION CAPTO TOOL MAGAZINE, RMP 600 PROBE, 213 PSI COOLANT THRU AND HOBBING.

Maximum Swing25.9"657.86 mm
Max Turning Diameter25.9"657.86 mm
Main Spindle Bore/Max Bar Capacity2.99/ 2.52.99/ 2.5
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide25.9"657.86 mm
Distance Between Centers40"1,016 mm
Maximum Cutting Length39.8"1,010.9 mm
X-Axis Travel (X1, X2, X3)24.2124.21
Z-Axis Travel (Z1, Z2, Z3)42.442.4
Y-Axis Travel (Y1, Y2, Y3)9.849.84
C-Axis Indexing (1, 2)0.00010.0001
W-Axis Travel Sub Spindle41.97 in
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.99"75.946 mm
Main Spindle Maximum Bar Work2.5"63.5 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)20/ 2520/ 25
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Bore SizeNON-THRU HOLE CYL. Y-1225NON-THRU HOLE CYL. Y-1225
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed5,000 RPM5,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)20/ 2520/ 25
Main & Sub Spindle SynchronizationYesYes
ATC Magazine Capacity7272
Number of Turrets11
Turret Tool Positions 1, 299
B-Axis TravelB-AXIS 0.0001 DEGREE CONTOURING (REQUIRES EIA/ISO)B-AXIS 0.0001 DEGREE CONTOURING (REQUIRES EIA/ISO)
B-Axis Head Indexing0°0.0001 deg
B Axis Rotary Tool Spindle Speed12,000 RPM12000 rpm
B-Axis Rotary Tool Spindle Horsepower30 hp
Parts CatcherNoNo
Chip ConveyorYesYes
Milling Spindle Synchronous TappingYesYes
Tool Eye Measurement Lower TurretYesYes
Coolant Thru Milling HeadYesYes
High Pressure Coolant System (PSI)213213
Number of Available Live Tool Holders00
Multi Tap TransformerYesYes
Tool Eye Measurement B AxisYesYes
Work Measuring System (Probe)RHP60 OR RHP600RHP60 OR RHP600
Hobbing FunctionYesYes
5-AXIS MACHINING PACKAGEYesYes
ControlCNC (Mazatrol Matrix 2)CNC (Mazatrol Matrix 2)
Dimensions110.24" X 157.1" X 107.1110.24" X 157.1" X 107.1
Weight28,800 LBS28,800 LBS

MAZATROL MATRIX 2
2ND SPINDLE C-AXIS WITH C1-C2 0.0001 DEGREE INCREMENTS
72 CAPTO-TOOL MAGAZINE
WORK MEASURING SYSTEM with RMP600 Probe
5-AXIS MACHINING PACKAGE (K7MAZ-MX-103)
CHIP CONVEYOR SIDE DISPOSAL (HINGE TYPE)
15KG/213 PSI THRU COOLANT/ FLOOD COOLANT SIMUL-FLOWABLE
MAXIMUM PROGRAM SIZE 8MB
HOBBING FUNCTION
AUTO PECKING DRILL CYCLE
TOOL RADIUS COMPENSATION
MULTI AND FLASH TOOL PREP
MILL TURNING MAZATROL
