MAZAK INTEGREX i100S
Have one to sell?
ConditionUsed
1 available
$213,500.00 USD

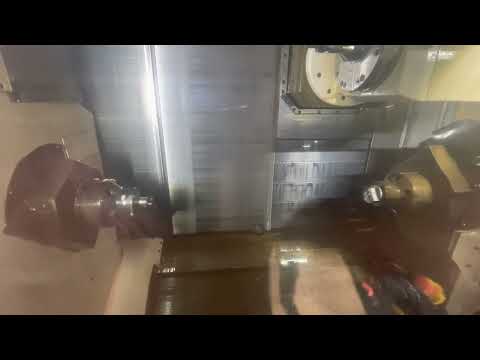

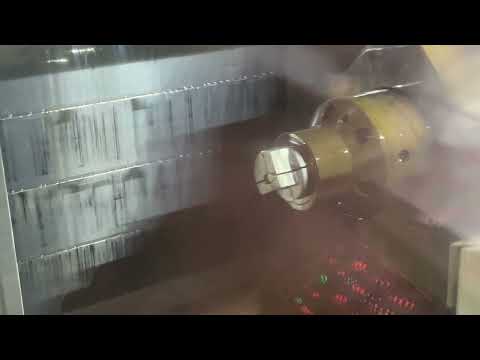

2015/16 MAZAK INTEGREX i100S MULTI AXIS CNC LATHE. EXCELLENT CONDITION USED IN THE MEDICAL INDUSTRY SIMULTANEOUS 5 AXIS SOFTWARE PACKAGE W/ SIMULTANEOUS 5 AXIS SOFTWARE
USED OIL ONLY TO CUT WITH.
MAZAK SMOOTH X CONTROL
KITAGAWA BB-206 A5 CHUCKS
DUAL SPINDLE, DUAL CHUCK
36 ATC CAPTO TOOL MAGAZINE
TOOL HOLDERS
COLLET CHUCKS WITH COLLETS
CHIP CONVEYOR
19" COLOR CRT
EIA/ISO, ADDITIONAL EIA/ISO FUNCTIONS
3-D COORDINATE CONVERSION
G00 SLOPE CONSTANT
CYLINDRICAL (G12) (EIA)
INDEPENDENT ROTATION
C AXIS 0.0001 INCREMENT (1ST SPINDLE)
15 HP A2-05 SPINDLE NOSE 1ST SPINDLE
15 HP 2nd SPINDLE C AXIS 0.0001 INCREMENT
CHUCK AIR BLAST 1ST AND 2ND SPINDLE
ROTARY TOOL SPEED 12,000 RPM
B AXIS CONTOURING 0.0001 DEGREE
6” DIA. THROUGH HOLE CHUCK FOR 2nd SPINDLE
KITAGAWA BB-206 CHUCK
AUTOMATIC TOOL EYE
COOLERS FOR BALL SCREWS X, Z-AXES
AUTOMATIC PARTS CATCHER WITH EJECTOR
5-AXIS MACHINING PACKAGE FOR SMOOTH HX
TOOL RADIUS COMP 5 AXIS (G41.5/G42.5)
SIGNAL TOWER (3) LIGHTS
SOFTWARE UPGRADE TO SUPPORT WINDOWS 8
STANDARD 230 VOLT ELECTRICS
RE-THREADING FUNCTION
ATS SYSTEM TRUE LENGTH COLLET
ERROR COMPENSATION G54.4
EIA DYNAMIC, COMPENSATION 1, WORK SETTING
DRAW BAR ADAPTOR FOR OPTIONAL 2” BAR CAPACITY PACKAGE
FIRE SUPPRESSANT SYSTEM
TURRET AIR BLAST
FLOOD COOLANT NOZZLE
213 PSI THROUGH COOLANT
X,Y,Z PITCH ERROR COMPENSATION
2015/16 MAZAK INTEGREX i100S MULTI AXIS CNC LATHE. EXCELLENT CONDITION USED IN THE MEDICAL INDUSTRY SIMULTANEOUS 5 AXIS SOFTWARE PACKAGE W/ SIMULTANEOUS 5 AXIS SOFTWARE
USED OIL ONLY TO CUT WITH.
Imperial
| Maximum Swing | 20" |
| Max Turning Diameter | 19.7" |
| Main Spindle Bore/Max Bar Capacity | 2.00 |
| Tail Stock/Sub Spindle | Tailstock |
| Distance Between Centers | 35.59" |
| Maximum Cutting Length | 33.6" |
| Distance Between Spindles | 35.55" |
| X-Axis Travel (X1, X2, X3) | 17.72 |
| Z-Axis Travel (Z1, Z2, Z3) | 35.59 |
| Y-Axis Travel (Y1, Y2, Y3) | 8.27"+/- 4.13 |
| C-Axis Indexing (1, 2) | 0.0001 |
| W-Axis Travel Sub Spindle | 35.55 in |
| Main Spindle Chuck Size | 6" |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 1.96" |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 10/15 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 10/15 |
| Main & Sub Spindle Synchronization | Yes |
| ATC Magazine Capacity | 36 |
| B-Axis Travel | (0.0001 DEGREE INCR.) 240 DEGREES |
| B-Axis Head Indexing | 0 deg |
| B-Axis Milling Spindle Horse Power | 7.5101 |
| B Axis Rotary Tool Spindle Speed | 12000 rpm |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Tool Eye Automatic Front Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Workpiece Unloader & Conveyor | (2" DIA. X 3.9" L X 5.5 LBS.) W/ CONVEYOR SYSTEM |
| Multi Tap Transformer | Yes |
| Control | CNC (MAZATROL SMOOTH X HIGH SMOOTHING) |
| Dimensions | 120 x 99 x 110 chip con - 170 x 60 x 60 misc - 2 pallets |
MAZAK SMOOTH X CONTROL
KITAGAWA BB-206 A5 CHUCKS
DUAL SPINDLE, DUAL CHUCK
36 ATC CAPTO TOOL MAGAZINE
TOOL HOLDERS
COLLET CHUCKS WITH COLLETS
CHIP CONVEYOR
19" COLOR CRT
EIA/ISO, ADDITIONAL EIA/ISO FUNCTIONS
3-D COORDINATE CONVERSION
G00 SLOPE CONSTANT
CYLINDRICAL (G12) (EIA)
INDEPENDENT ROTATION
C AXIS 0.0001 INCREMENT (1ST SPINDLE)
15 HP A2-05 SPINDLE NOSE 1ST SPINDLE
15 HP 2nd SPINDLE C AXIS 0.0001 INCREMENT
CHUCK AIR BLAST 1ST AND 2ND SPINDLE
ROTARY TOOL SPEED 12,000 RPM
B AXIS CONTOURING 0.0001 DEGREE
6” DIA. THROUGH HOLE CHUCK FOR 2nd SPINDLE
KITAGAWA BB-206 CHUCK
AUTOMATIC TOOL EYE
COOLERS FOR BALL SCREWS X, Z-AXES
AUTOMATIC PARTS CATCHER WITH EJECTOR
5-AXIS MACHINING PACKAGE FOR SMOOTH HX
TOOL RADIUS COMP 5 AXIS (G41.5/G42.5)
SIGNAL TOWER (3) LIGHTS
SOFTWARE UPGRADE TO SUPPORT WINDOWS 8
STANDARD 230 VOLT ELECTRICS
RE-THREADING FUNCTION
ATS SYSTEM TRUE LENGTH COLLET
ERROR COMPENSATION G54.4
EIA DYNAMIC, COMPENSATION 1, WORK SETTING
DRAW BAR ADAPTOR FOR OPTIONAL 2” BAR CAPACITY PACKAGE
FIRE SUPPRESSANT SYSTEM
TURRET AIR BLAST
FLOOD COOLANT NOZZLE
213 PSI THROUGH COOLANT
X,Y,Z PITCH ERROR COMPENSATION
