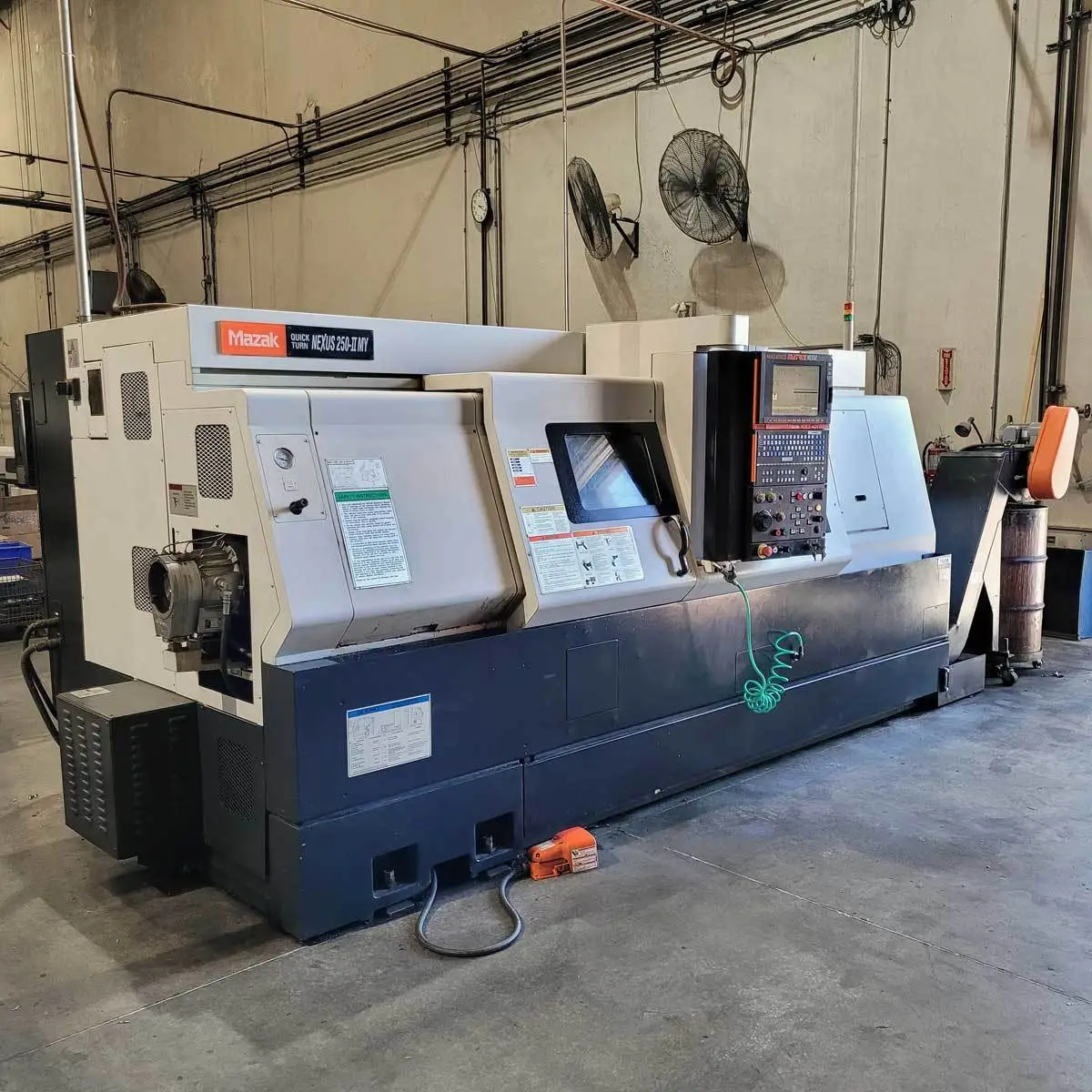

MAZAK QTN 250MY/ 60" WITH STEADY REST
Have one to sell?
ConditionUsed
1 available
THIS MAZAK QTN 250MY/ 60" IS AN IMTS DEMO MACHINE INSTALLED IN LATE 2010 THAT INCLUDES AN LNS STEADY REST, MAZAK PREPPED GUN DRILL WITH TWIN TUBE EJECTOR DRILLING, GUN DRILLING ADAPTABLE WITH HSK-63 ATTACHMENT (GUN DRILL IS SERVO DRIVEN PROGRAMABLE) HIGH TORQUE MAIN SPINDLE OPTION, HSK -63 PROGRAMMABLE TAILSTOCK/LIVE CENTER, SUPERFLOW V8/ 1000 PSI COOLANT THRU, HOBBING SOFTWARE AND A NICE COMPLEMENT OF LIVE AND STATIC TOOLS.
MAZATROL MATRIX NEXUS
SIGNAL TOWER 3 LIGHTS
HIGH TORQUE MAIN SPINDLE OPTION
SERVO PROGRAMMABLE TAILSTOCK
HSK LIVE CENTER FOR TAILSTOCK
HSK TOOL HOLDER FOR DRILLING WITH TAILSTOCK GUN DRILL & TWIN TUBE EJECTOR DRILLING
THRU COOLANT TAIL STOCK
LNS/AUTOBLOK STEADY REST SLUZ-2A
MAZAK ELECTRICAL INTERFACE FOR VARIABLE PRESSURE SUPER FLOW V8/1000
SUPER FLOW V8/1000 VARIABLE HIGH PRESSURE WITH OPERATION THRU TURRET AND TAILSTOCK 480 VOLT
MTR 10-4/4 COOLANT PUMP THRU TAILSTOCK ONLY 480 VOLT MACHINE CONNECTION FOR TWIN TUBE DRILLING
80 GALLON SUB TANK FOR MTR10-4/4 WITH CONNECTIONS & FOR OPTIONAL PUMP FOR TWIN TUBE DRILLING
MAXIMUM PROGRAM SIZE 8MB
HOBBING SOFTWARE WITH CUSTOM MACROS
AUTO PECKING DRILL CYCLE
CHIP CONVEYOR 1500U SIDE EXIT HINGE TYPE
***TOOLING
TURNING FORWARD RIGHT - QUANTITY OF 2
TURNING REVERSE LEFT - QUANTITY OF 1
FACING - QUANTITY OF 1
TURRET CAP VDI-40 - QUANTITY OF 1
U-DRILL HOLDER 40MM - QUANTITY OF 1
BORING BAR 1-1/2 HOLDER - QUANTITY OF 2
V-TYPE MILLING HOLDER ER32 - QUANTITY OF 1
H-TYPE MILLING HOLDER ER32 - QUANTITY OF 2
** IMTS 2008 DEMONSTRATION MACHINE INSTALLED LATE 2010-10-20 **
THIS MAZAK QTN 250MY/ 60" IS AN IMTS DEMO MACHINE INSTALLED IN LATE 2010 THAT INCLUDES AN LNS STEADY REST, MAZAK PREPPED GUN DRILL WITH TWIN TUBE EJECTOR DRILLING, GUN DRILLING ADAPTABLE WITH HSK-63 ATTACHMENT (GUN DRILL IS SERVO DRIVEN PROGRAMABLE) HIGH TORQUE MAIN SPINDLE OPTION, HSK -63 PROGRAMMABLE TAILSTOCK/LIVE CENTER, SUPERFLOW V8/ 1000 PSI COOLANT THRU, HOBBING SOFTWARE AND A NICE COMPLEMENT OF LIVE AND STATIC TOOLS.
Imperial
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.75" |
| Main Spindle Bore/Max Bar Capacity | 3.46" / 3" |
| Tail Stock/Sub Spindle | Tailstock |
| Maximum Swing Over Cross Slide | 16.04" |
| Distance Between Centers | 60" |
| Maximum Cutting Length | 60" |
| X-Axis Travel (X1, X2, X3) | 9" |
| Z-Axis Travel (Z1, Z2, Z3) | 60" |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2" |
| C-Axis Indexing (1, 2) | 360,000° |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.46" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 HI TORQUE |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Horse Power 1, 2 | 4500 |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| High Pressure Coolant System (PSI) | 1000 |
| Number of Available Live Tool Holders | 3 |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 106.8 x 73.2" X 75" |
| Weight | 12,000 LBS |
MAZATROL MATRIX NEXUS
SIGNAL TOWER 3 LIGHTS
HIGH TORQUE MAIN SPINDLE OPTION
SERVO PROGRAMMABLE TAILSTOCK
HSK LIVE CENTER FOR TAILSTOCK
HSK TOOL HOLDER FOR DRILLING WITH TAILSTOCK GUN DRILL & TWIN TUBE EJECTOR DRILLING
THRU COOLANT TAIL STOCK
LNS/AUTOBLOK STEADY REST SLUZ-2A
MAZAK ELECTRICAL INTERFACE FOR VARIABLE PRESSURE SUPER FLOW V8/1000
SUPER FLOW V8/1000 VARIABLE HIGH PRESSURE WITH OPERATION THRU TURRET AND TAILSTOCK 480 VOLT
MTR 10-4/4 COOLANT PUMP THRU TAILSTOCK ONLY 480 VOLT MACHINE CONNECTION FOR TWIN TUBE DRILLING
80 GALLON SUB TANK FOR MTR10-4/4 WITH CONNECTIONS & FOR OPTIONAL PUMP FOR TWIN TUBE DRILLING
MAXIMUM PROGRAM SIZE 8MB
HOBBING SOFTWARE WITH CUSTOM MACROS
AUTO PECKING DRILL CYCLE
CHIP CONVEYOR 1500U SIDE EXIT HINGE TYPE
***TOOLING
TURNING FORWARD RIGHT - QUANTITY OF 2
TURNING REVERSE LEFT - QUANTITY OF 1
FACING - QUANTITY OF 1
TURRET CAP VDI-40 - QUANTITY OF 1
U-DRILL HOLDER 40MM - QUANTITY OF 1
BORING BAR 1-1/2 HOLDER - QUANTITY OF 2
V-TYPE MILLING HOLDER ER32 - QUANTITY OF 1
H-TYPE MILLING HOLDER ER32 - QUANTITY OF 2
** IMTS 2008 DEMONSTRATION MACHINE INSTALLED LATE 2010-10-20 **
