MAZAK HCN 5000E/ 4 AXIS WITH UPGRADE PKG
MACHINING CENTERS, HORIZONTAL

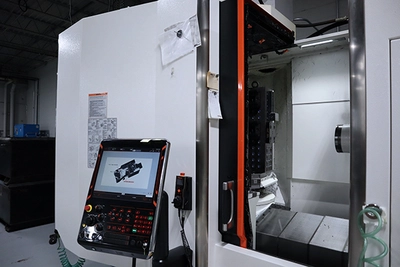

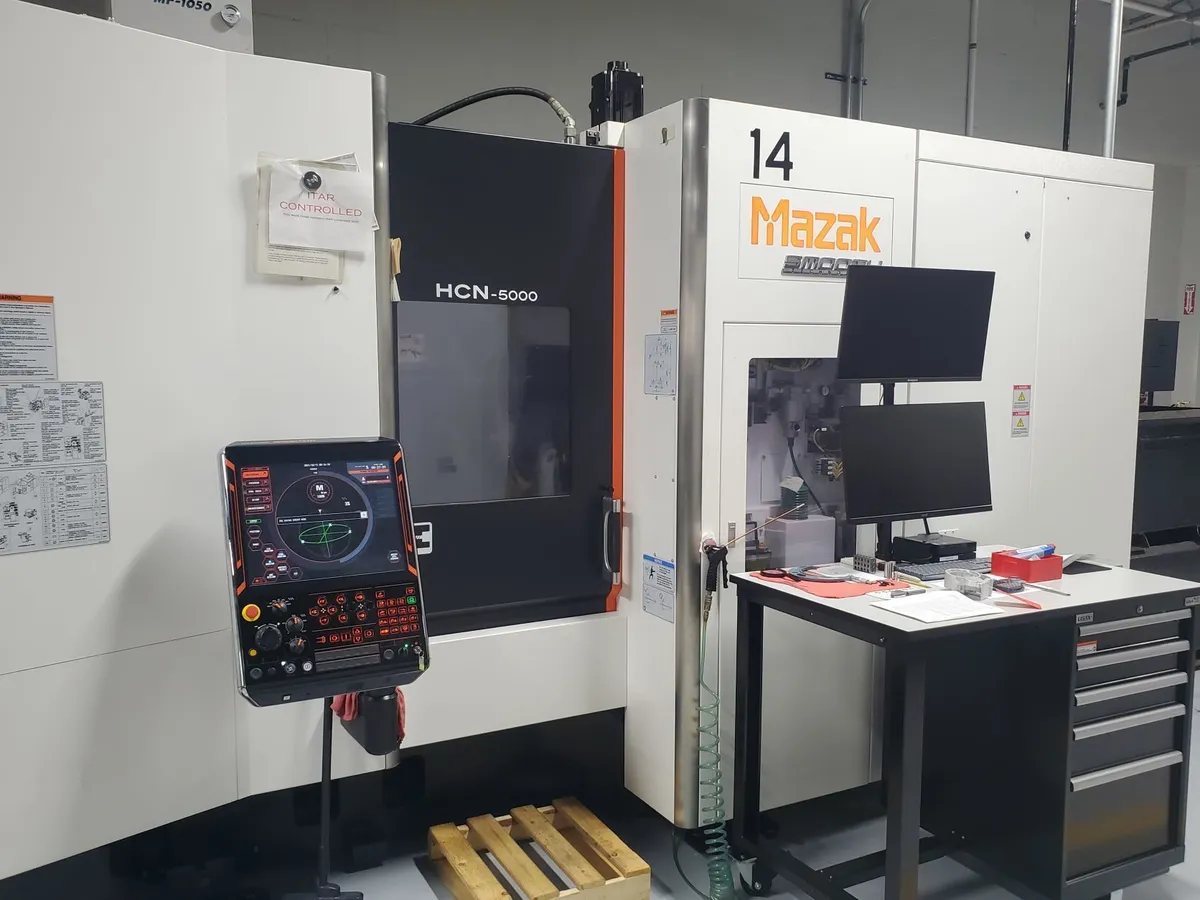

A 2018 MAZAK HCN 5000E WITH UPGRADED HIGH PERFORMANCE PACKAGE, CAT 40 BIG PLUS SPINDLE, 60 ATC, RENISHAW OMP60M PROBE, MAZAK SUPER FLOW S8 1000 PSI COOLANT THRU AND SMOOTH X CONTROL
| PALLET SIZE | 500 mm |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring |

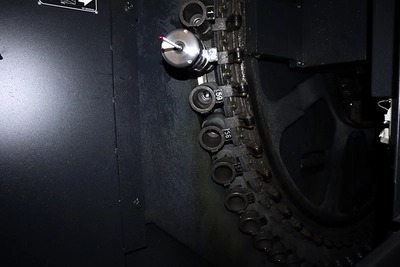

| TOOL CAPACITY (ATC) | 60 |
| SPINDLE TAPER | CAT 40 |
| MAXIMUM WORKPIECE DIAMETER | 31.5" |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE (W) | 19.69" |
| PALLET SIZE (L) | 19.69" |
| PALLET LOAD CAPACITY | 1543 lb |
| X-AXIS TRAVEL | 28.74" |
| Y-AXIS TRAVEL | 28.74" |
| Z-AXIS TRAVEL | 31.5" |
| SPINDLE SPEED | 14000 rpm |
| SPINDLE DRIVE MOTOR | 40 hp |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 1000 psi |
| CHIP CONVEYOR | Yes |
| MAX WORKPIECE SIZE | 39.37" |
| Control | CNC (MAZATROL SMOOTH X) |
| Dimensions | 194.02" x 96.22" x 110.75" |
| Weight | 26,411 lbs |
SMOOTH X CONTROL
4TH-AXIS ROTARY TABLE
1543 lbs PALLET LOAD CAPACITY - UPGRADE
UPGRADED HIGH PERFORMANCE PACKAGE
BIG PLUS CAT 40 SPINDLE
LNS TURBO MH-250 CHIP CONVEYER W/60" DISCHARGE
MAZAK SUPER FLOW S8 1000PSI THRU SPINDLE COOLANT
FLOOD COOLANT
MIST COLLECTOR
WORKPIECE AIR BLAST
MANUAL PULSE GENERATOR
RENISHAW OMP60M PROBE SYSTEM
ADDITIONAL WORK LIGHT
RENISHAW OMP60M OPTICAL PROBE SYSTEM

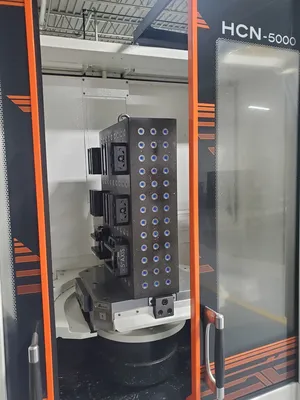

(1) AMRE RECTANGLE EPOXY TOMBSTONE
(1) AMRE SQUARE EPOXY TOMBSTONE
TRIANGULAR RAIL SYSTEM
MAGNETIC MILLING BUFFER
HIGH-SPEED 3D SOFTWARE PACKAGE
