OKUMA VTM 100, LIVE MILLING VTL **PENDING RELEASE**
VTL VERT. LIVE SPINDLE CNC
This Okuma VTM 100 has a Fanuc 31iA control, 40" 4-jaw chuck, BT50 Big Plus Spindle, 60 position ATC, 40 HP, Live milling, 1,000 psi CTS, dual chute chip conveyor and only 1,377 Cut Hours.
| Maximum Swing | 40" |
| Maximum Turning Diameter | 39.4" |
| Maximum Turning Height | 33 |
| Table Weight Capacity | 1,763.7 lb |
| Vertical Travel of Ram, Z-Axis | 33" |
| Horizontal Railhead Travel, X-Axis | 25.6" |
| Table Speed, 2-Ranges | 4-416 rpm & 13-1,250 rpm via High/low output changeover |
| C-Axis Contouring | 360,000 |
| Live Spindle Speed, 2-Ranges | 4500 |
| Automatic Tool Changer | 60 |
| Tool Shank | BT 50 Big Plus |
| Main Table Motor | 40 |
| Live Spindle Motor | 10/ 7.5 HP |
| Control | CNC (FANUC 31IA) |
| Weight | 29,767 LBS |

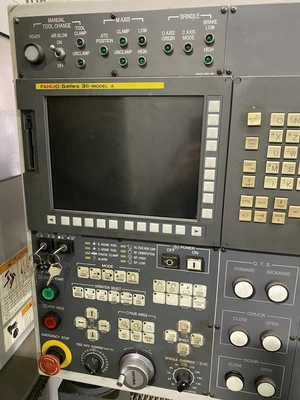

FANUC 31IA CONTROLS
MP SYSTEMS 1,000 PSI COOLANT THRU SPINDLE
360,000 POSITION “C” AXIS
HYDRAULIC CHUCK CONTROLS
40” MANUAL 4-JAW CHUCK
12) TURNING TOOL HOLDERS
1) ER16 LIVE MILLING HOLDER
2) END MILL HOLDERS
ENAMOTO TWIN CHUTE CHIP CONVEYOR
60 POSITION ATC
MANUALS
New 2/2011, installed 5/2011
