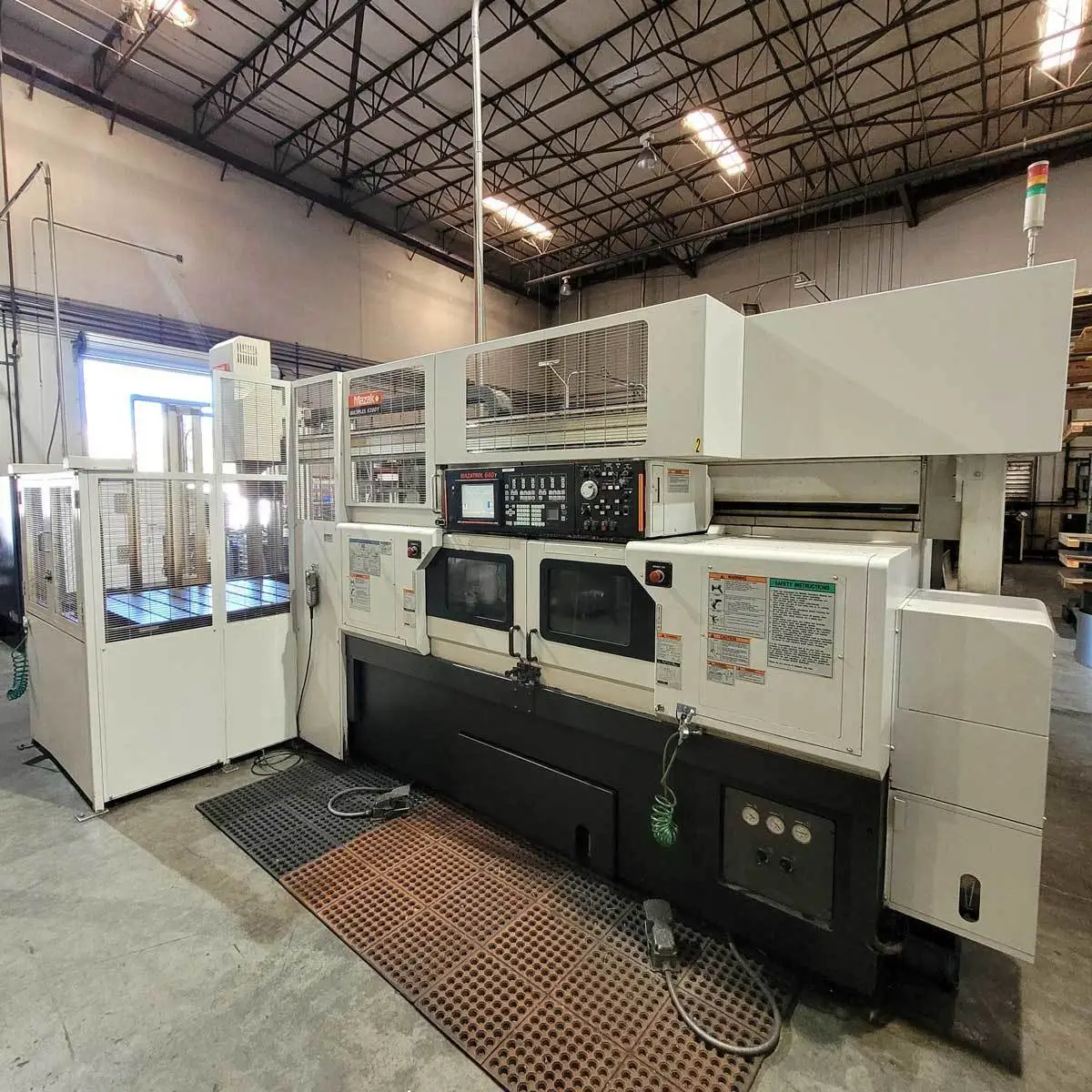

MAZAK MULTIPLEX 6200Y WITH GL-100 GANTRY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Document (1)

Specs for Multiplex 6200Y_05-2005.docx

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
MULTIPLEX 6200Y W/GANTRY
Condition:
Good
Year:
2005
Stock #:
210073
Status:
For Sale

Description

THIS MULTIPLEX 6200Y HAS A GL-100F/ PITCH FEED CONVEYOR WITH D3 HAND, 2-8" CHUCKS, Y AXIS CONTROL, SYNCH TAPPING, TOOL EYES, 213 PSI CTS, STANDARD TURNING & BORING BAR HOLDERS, 2 VERTICAL & 1 HORIZONTAL MILL HOLDERS.

Maximum Swing12.5"317.5 mm
Max Turning Diameter10.24"260.1 mm
Main Spindle Bore/Max Bar Capacity2.4"/ 2"2.4"/ 2"
Tail Stock/Sub SpindleN/AN/A
Distance Between Spindles46.85"1,190 mm
X-Axis Travel (X1, X2, X3)9.44"9.44"
Z-Axis Travel (Z1, Z2, Z3)17.32"/ 19.48"17.32"/ 19.48"
Y-Axis Travel (Y1, Y2, Y3)+/- 2"+/- 2"
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.4"60.96 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)30/ 2030/ 20
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 255
Chip ConveyorYesYes
Milling Spindle Synchronous TappingYesYes
Tool Eye Automatic Front SpindleYesYes
Tool Eye Automatic Second SpindleYesYes
High Pressure Coolant System (PSI)213213
Number of Available Live Tool Holders33
Gantry SystemYesYes
(Multiplex) Standard Chuck Dia. Main Spindle (R)88
(Multiplex) Standard Chuck Dia. Main Spindle (L)88
Stroke of Y-Axis (Multiplex)+/- 2"+/- 2"
ControlCNC (MAZATROL FUSION 640)CNC (MAZATROL FUSION 640)
Dimensions141" X 78" X 83"141" X 78" X 83"
Weight18,520 LBS18,520 LBS

FUSION 640 CONTROL WITH EIA/ISO OPTION PACKAGE
CHIP CONVEYOR
Y AXIS CONTROL
TOOL EYES
MILLING SPINDLE SYNCHRONOUS TAPPING
GL100F/PITCH FEED CONVEYOR WITH D3 HAND
213 HIGH PRESSURE COOLANT
AUTO PECKING WITH LOAD DETECTION
AUTO POWER OFF
SIGNAL TOWER 3 COLORS
OVERLOAD DETECTION
POLYGON MACHINING SOFTWARE
STANDARD TURNING TOOL HOLDERS
STANDARD BORING BAR HOLDERS
2 VERTICAL MILL HOLDERS AND 1 HORIZONTAL MILL HOLDER
POLYGON HORIZONTAL MILL HOLDER
